SIMAGIC Alpha EVO Ultra 28Nm

Save 4%

SIMAGIC Alpha EVO Ultra 28Nm

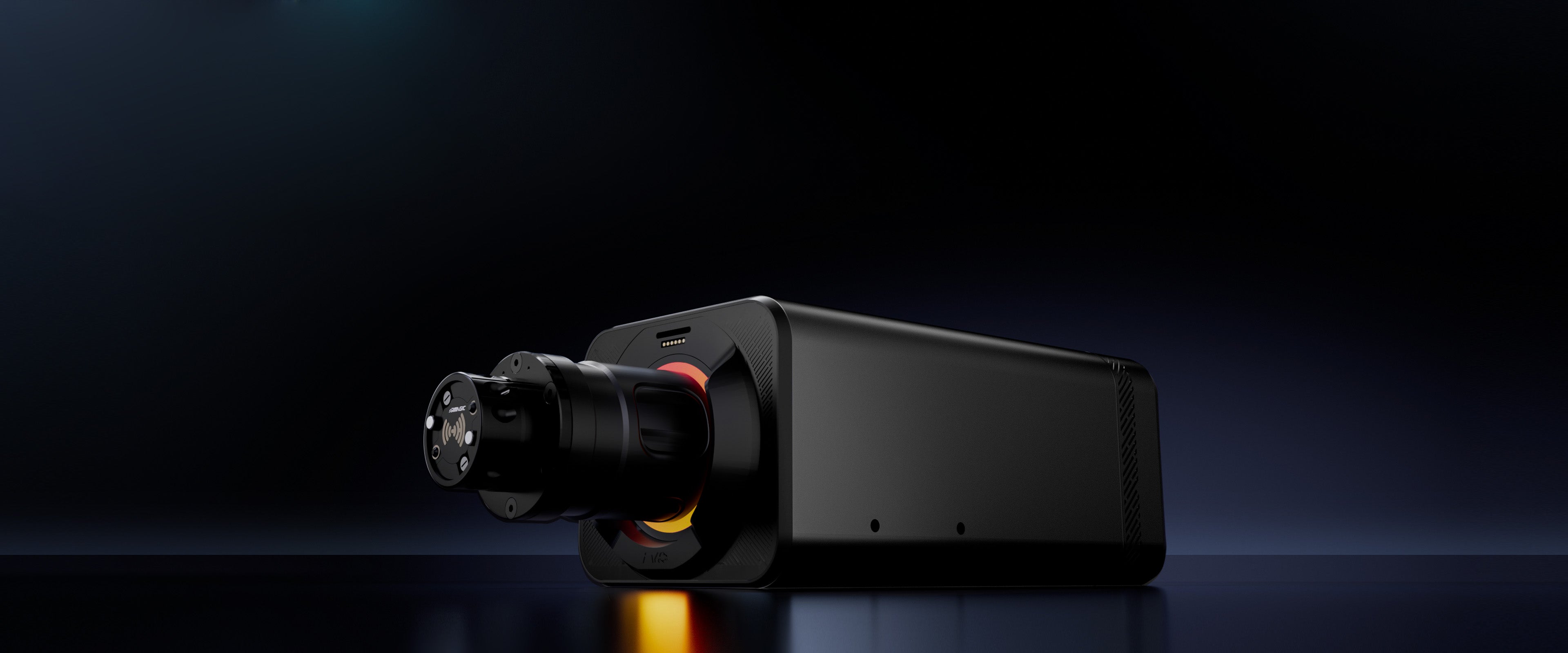

The strongest wheelbase in the Simagic ecosystem: 28 Nm of continuous torque from an ultra-low inertia servo motor, actively cooled so the full output holds from lap 1 to the end of an endurance stint.

28 Nm continuous torque with active cooling - no thermal throttling
Ultra-low inertia servo, zero-cogging, 21-bit encoder - over 2 million steps per rotation
New-generation DFDF algorithm - microsecond-level force feedback processing
11 connection ports (CAN, CAN FD, USB) + magnetic snap-on Simagic dashes

Product variants

€1.146,00 €1.199,00You save €53,00

incl. VAT

Next business day delivery: place your order before 16:30 DHL Express, or 15:00 UPS Express Saver.

FREE DHL Ecomony/UPS Standard shipping for orders over 390€ and DHL Express/UPS Express Saver over 1190€

Red shield icon with number 2, indicating level two protection or security.

2 year warranty. B2B too!

Shipping costs and estimated delivery time?

Our webshop is connected directly to DHL and UPS systems - you'll see real-time shipping prices and accurate delivery date estimates at checkout, based on your address. Every shipment is fully insured.

DHL Express 12:00

delivery by 12:00 noon on the next business day in many EU destinations
orders placed before 16:30 are dispatched the same day
limitations: max. 27 kg, not available for cockpits or seats

DHL Express

next-business-day delivery in many EU destinations
orders placed before 16:30 are dispatched the same day
limitations: max. 27 kg, not available for cockpits or seats

UPS Express Saver

the faster UPS option, with next-business-day delivery in many EU destinations
orders placed before 15:00 are dispatched the same day
limitations: max. 37 kg, not available for cockpits or seats

DHL Economy

reliable delivery at a lower cost
orders placed before 16:30 are dispatched the same day
no weight limit - suitable for cockpits and seats

UPS Standard

our lowest-cost shipping option
orders placed before 15:00 are dispatched the same day
no weight limit - suitable for cockpits and seats
free Saturday delivery in many larger cities in the UK, DE, FR, NL, BE, IT, ES and PL - note: the delivery estimate at checkout doesn't yet show Saturday as a delivery day, so your order may arrive a day earlier than estimated

Manual, Downloads and Technical details

Downloads
Quick guide - download
User manual - download
Dimensions drawing - download
SimPro Manager software - download
EVO wheelbase installation tutorial (video)

Technical details:

Torque: 28 Nm continuous - sustained by the dynamic cooling system, no thermal throttling
Motor: ultra-low inertia 5-pole-pair industrial servo with zero-cogging control and slip ring for unlimited rotation
Encoder: 21-bit resolution - over 2 million steps per rotation
FFB processing: DFDF algorithm, 20 kHz response rate, 180 MHz processor - native iRacing 360 Hz FFB
Power: 550 W max, 48 V power supply
Connectivity: 11 ports - CAN, CAN FD and USB; wireless power for magnetic quick releases
Dimensions: 359 x 130 x 110 mm
Weight: 11 kg
Material: 500-ton die-cast aluminium with CNC machining
Certifications: FCC, RCM, VCI, EAC, RoHS, CE - warranty 2 years

Compatibility

PC (Windows) only - USB connection, configured via the free SimPro Manager software. Native support for iRacing's 360 Hz force feedback mode.

Steering wheels

Simagic next-gen wheels (CAN FD) and legacy Simagic wheels (2.4G)
Third-party wheels via the optional Simagic QR-A adapter - USB passthrough with full screen, LED and button function

Peripherals

Simagic shifters, handbrakes and sequential gearboxes - legacy (CAN) and next-gen (CAN FD) - connected directly to the base's 11-port hub

Accessories

Simagic QR50 and QR70 quick releases, QR-A adapter
Mounting brackets MB-A, side mount MB-S, front mount MB-F, T-LOC desk fixture
Magnetic snap-on dashes (MagicDash 4 coming soon)

Mounting - bottom, side, front or desk mounting. For exact hole patterns see the mounting dimensions drawing.

Note! Only bottom mounting needs no extra accessories. A front-mount plate blocks the magnetic QR interface - do not combine it with magnetic power/data wheels.

Warranty, exchanges and returns

Warranty and legal guarantee

The manufacturer's warranty period for this product is shown below the Add to cart button. Some brands offer longer coverage - Simucube and Sim-Lab products come with a 3-year manufacturer's warranty, and the Simucube ActivePedal Ultimate with 5 years.

If you buy as a consumer, you also have a minimum two-year legal guarantee from GPerformance as the seller. The manufacturer's warranty is additional and does not replace or limit your statutory rights.

If something goes wrong, contact us - we'll handle the claim for you, including any coordination with the manufacturer. You don't have to deal with anything yourself, and shipping cost is on us.

Need help choosing?

If you're not sure whether a product is compatible with your setup, get in touch before ordering. We'll help you pick the right option. Honest advice is always free.

Product exchange within 14 days

Sometimes gear feels different on your rig than you expected - force feedback, pedal response, wheel ergonomics. That's fine. Within 14 days of delivery, you can request an exchange for a different product or variant. The product just needs to be in good condition, complete and returned in its original box - short testing on your rig is fine.

Exchanges are meant for genuine purchases, not for trying out products. If you're unsure what suits your setup or driving style, ask us before ordering - we're happy to help, and we want you racing on gear you're happy with. For business (B2B) purchases, please contact us first.

14-day right of withdrawal

If you buy as a consumer and change your mind, let us know within 14 days of receiving the product - no reason needed. You can use the Withdraw from contract link in the footer or email support@gperformance.eu.

Once you've notified us, you have another 14 days to send the product back. The direct cost of return shipping is covered by you. If the product is faulty or you received the wrong item, contact us first and we'll arrange a suitable return method.

Inspecting and returning the product

You can unpack and inspect the product just as you would in a store. Handle it with care and return it complete, with all accessories, cables and manuals. Keep the original box and protective materials, as they help protect the product during return shipping.

If you've handled or used the product beyond what's needed to establish its nature, characteristics and functioning, you keep your right of withdrawal, but we may reduce the refund by the loss in value this caused.

Any questions?

Questions about compatibility, warranty, exchanges or returns? Email support@gperformance.eu - a real person will reply, often the owner himself.

What is included?

1x Simagic Alpha EVO Ultra wheelbase (28 Nm)
2x installation kit
1x external kill switch
1x power adapter (48 V)
1x USB cable (Type A-B) + 1x USB cable (Type-C)
1x cable (RJ45-RJ11)

The Simagic SimPro Manager software is a free download.

Note! A steering wheel and quick release are not included.

The strongest wheelbase in the Simagic ecosystem

The Alpha EVO Ultra takes the EVO platform - ultra-low inertia motor, zero-cogging control, 21-bit encoder - and scales it to 28 Nm of continuous, actively cooled torque. The result is not just more force, but more headroom: richer dynamic response even at the lower torque levels most drivers actually run.

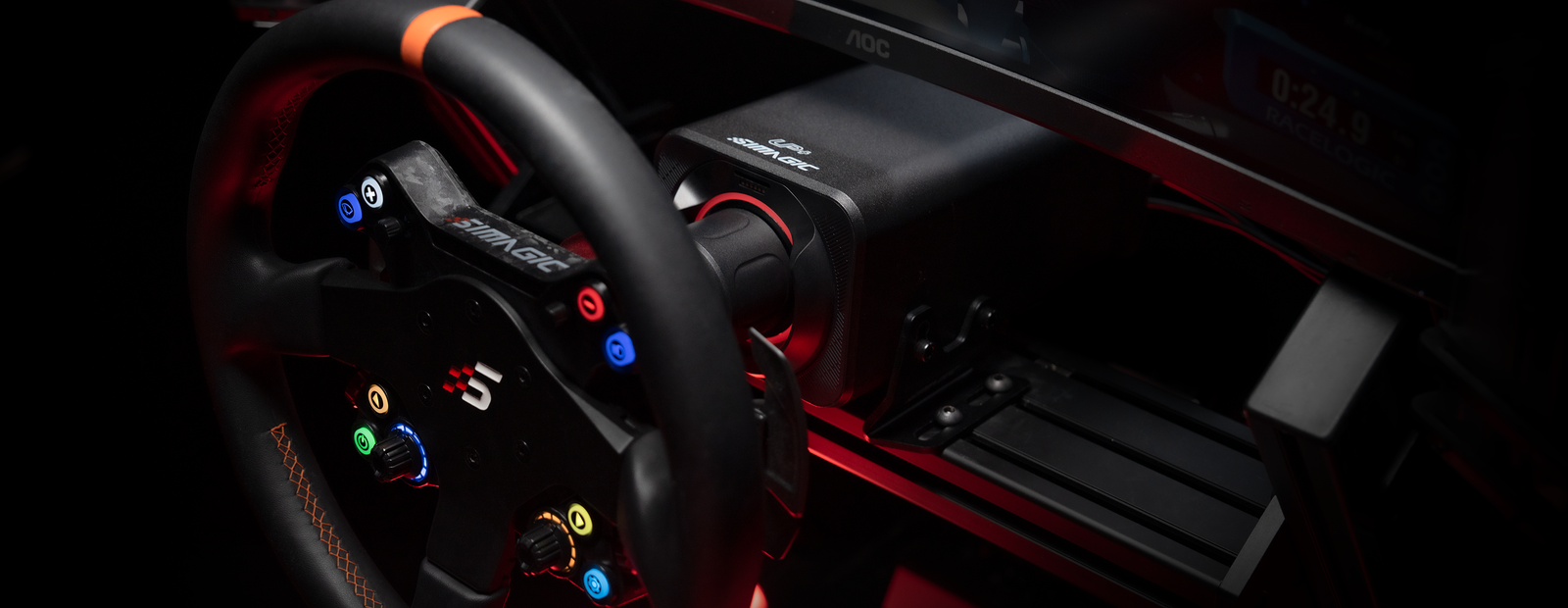

Simagic Alpha EVO Ultra 28Nm direct drive wheelbase mounted on a sim racing cockpit

Top of the Alpha EVO line

The Ultra is the flagship of the Alpha EVO range. Its 28 Nm outreaches the 18 Nm EVO Pro and places it among the strongest direct-drive bases available, while the ultra-low inertia motor keeps that force fast and precise rather than heavy - so the extra torque adds detail and control, not just raw weight at the rim.

Simagic Alpha EVO Ultra - low-inertia rotor animation

Ultra-low inertia, zero-cogging motor

The 5-pole-pair industrial servo uses a reduced rotor radius - lengthened, with an optimized coil fill rate to keep the torque - so the wheel changes direction with minimal inertia of its own. Zero-cogging control removes the mechanical stepping feel, leaving slip, traction loss and road texture as the only things you feel in the rim.

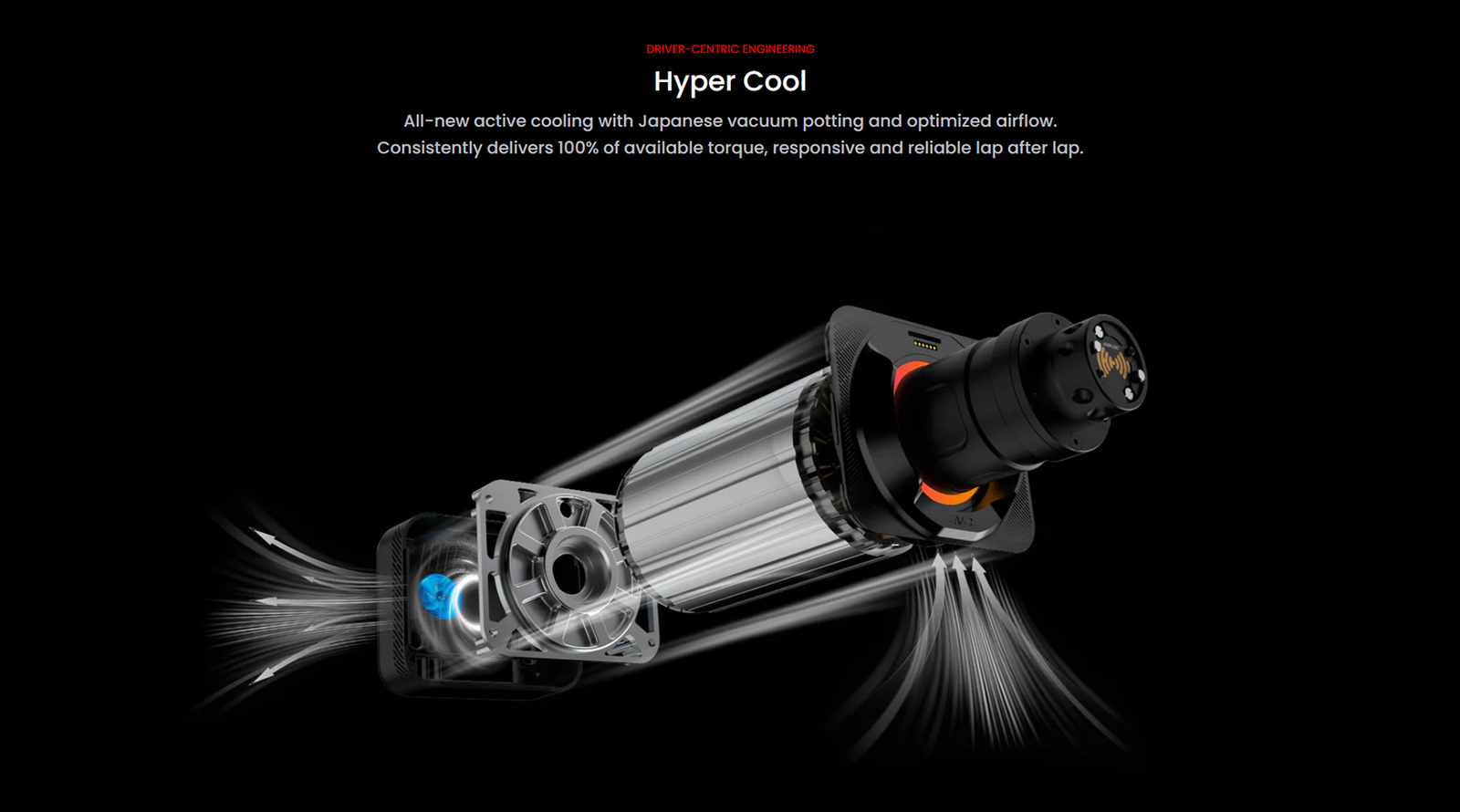

28 Nm continuous, actively cooled

The 28 Nm rating is continuous, not a short burst - and that is down to the Hyper Cool active cooling system. Japanese vacuum potting, optimized airflow and high-precision temperature sensors keep 100% of the available torque on tap through entire endurance stints, where other wheelbases thermally throttle and fade. In practice the torque works as headroom: most drivers run far less, and the reserve keeps high-downforce cars and curb strikes from clipping.

Simagic Alpha EVO Ultra - Dynamic Force Domain Filter (DFDF) algorithm

21-bit precision, microsecond processing

The 21-bit encoder resolves more than 2 million steps per rotation, so even the smallest steering corrections register. Downstream, the new-generation Dynamic Force Domain Filter (DFDF) rebuilds the FFB curve in real time at microsecond speeds, preserving fine force details through counter-steer flicks and curb strikes. The pipeline runs at 20 kHz, with native support for iRacing's 360 Hz force feedback mode.

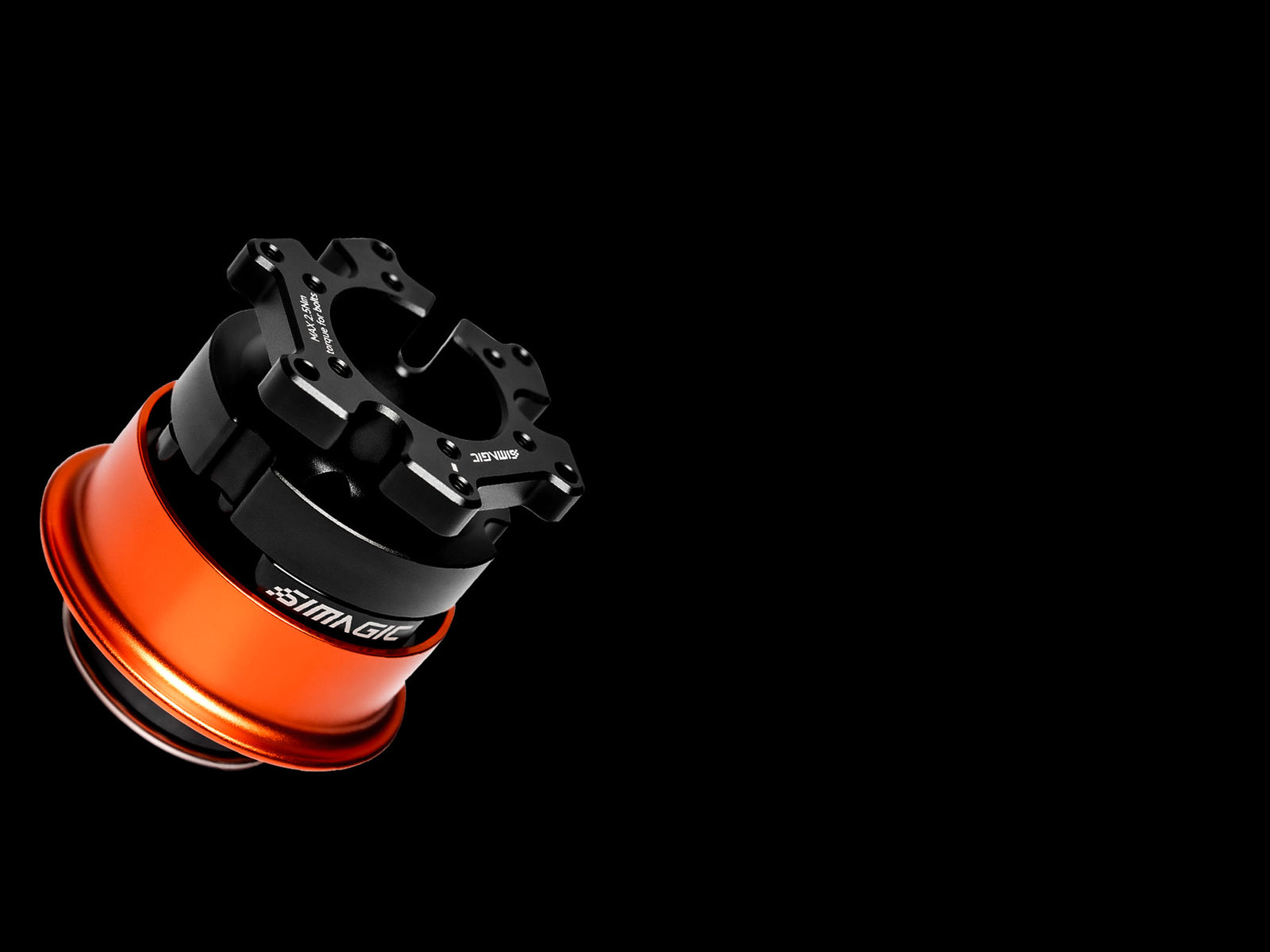

Simagic Alpha EVO Ultra - QR-A adapter, open ecosystem for third-party steering wheels

Open ecosystem - use any wheel

Simagic steering wheels connect natively - next-gen wheels over CAN FD, legacy wheels over 2.4G. But the base is not locked to one brand: the optional Simagic QR-A quick release adapter connects most third-party steering wheels over USB passthrough, keeping their screens, LEDs and buttons fully working with no extra wiring. Add to that an 11-port built-in extender (CAN, CAN FD and USB) for pedals, shifters and handbrakes, and the whole rig runs off a single base.

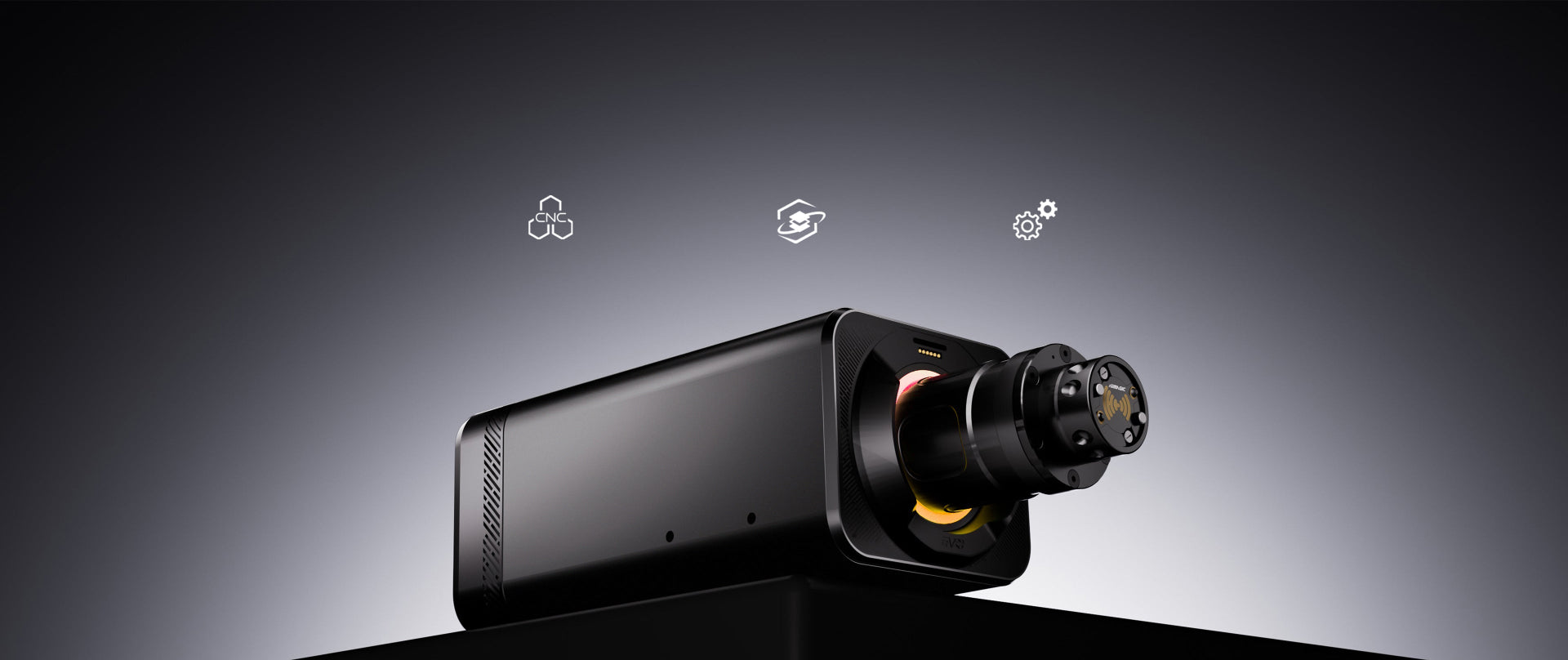

Built to industrial standards

The shell is 500-ton die-cast aerospace aluminium finished with CNC machining, and power comes from a 48 V supply sized for the 28 Nm motor. Every unit passes thousands of hours of maximum-torque stress testing, torque-sensor drift tests and quick-release insertion-fatigue cycles, and the included external kill switch shuts the base down instantly. Certified FCC, RCM, VCI, EAC, RoHS and CE, with a 2-year warranty.

What our customers say about this product

FAQs

What is the difference between the Alpha EVO Ultra and the Alpha EVO Pro?

The Ultra is the flagship: 28 Nm of continuous torque held by an active cooling system, the new-generation DFDF force feedback algorithm, an 11-port CAN/CAN FD/USB hub, native iRacing 360 Hz FFB and magnetic snap-on dash support. The Alpha EVO Pro offers 18 Nm on the shared ultra-low inertia platform at a lower price.

What does 28 Nm continuous torque mean compared to peak torque?

Peak torque is a short burst; continuous torque is what the base can hold indefinitely. The Ultra sustains its full 28 Nm from the first lap to the end of an endurance stint - the dynamic cooling system prevents the thermal throttling that makes some wheelbases fade as the motor heats up.

Does the Alpha EVO Ultra work on PlayStation or Xbox?

No - the Alpha EVO Ultra is PC only (Windows), connected over USB and configured in the free SimPro Manager software. On PC it natively supports iRacing's 360 Hz force feedback mode.

Which steering wheels work with the Alpha EVO Ultra?

Simagic next-generation wheels over CAN FD and legacy Simagic wheels over 2.4G wireless. Third-party wheels connect through the optional Simagic QR-A adapter with USB passthrough - screens, LEDs and buttons keep full function. Shifters, handbrakes and other peripherals plug directly into the base's 11-port hub.

How can the Alpha EVO Ultra be mounted?

Four ways: bottom, side (MB-S bracket), front (MB-F bracket) or on a desk via the T-LOC fixture - only bottom mounting needs no extra accessories. One important note: a front-mount plate blocks the magnetic quick release interface, so do not combine front mounting with wheels that draw power or data magnetically through the QR.
