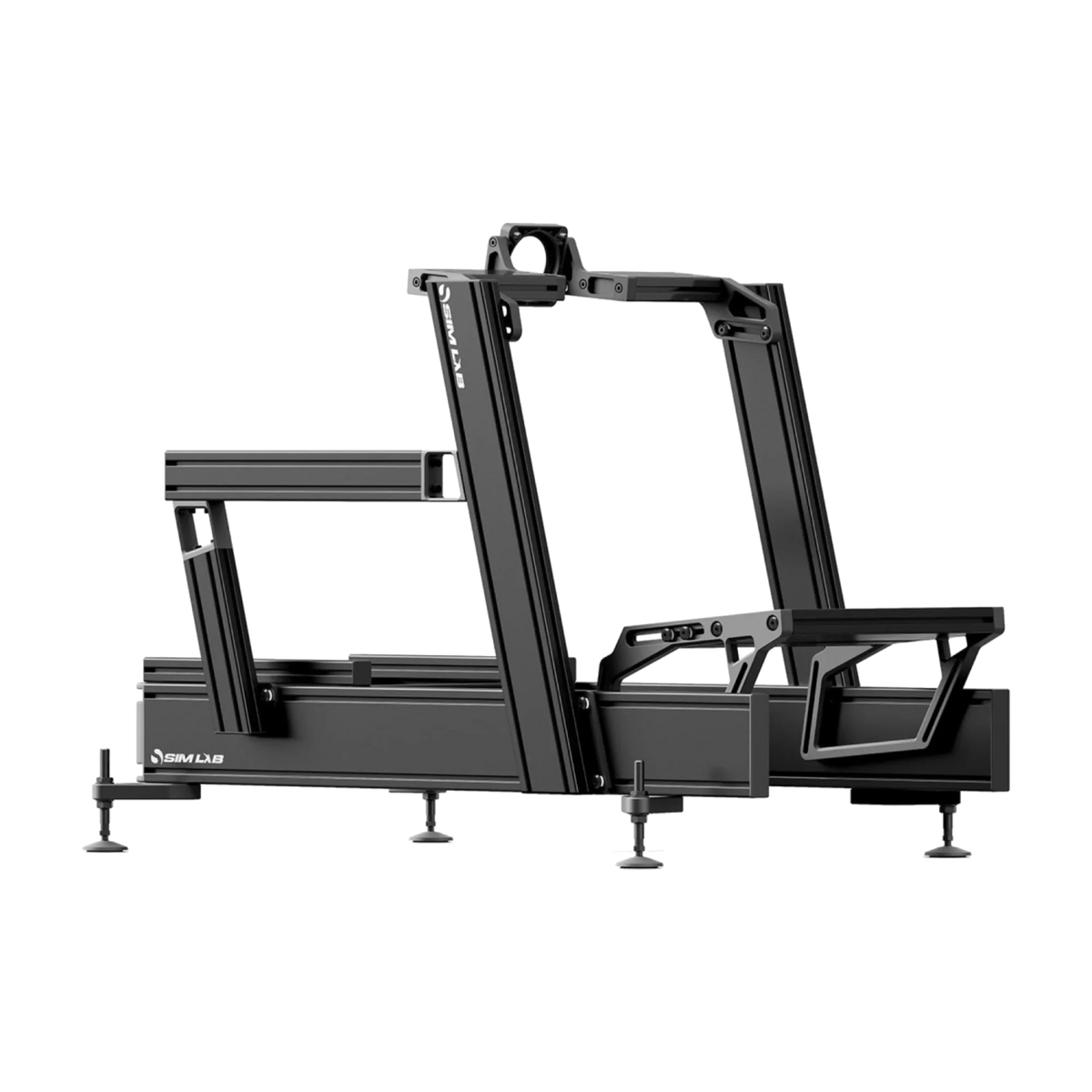

Sim-Lab P1X Pro Sim Racing Cockpit shown with modular aluminum design for stability and adjustability in sim racing setups.

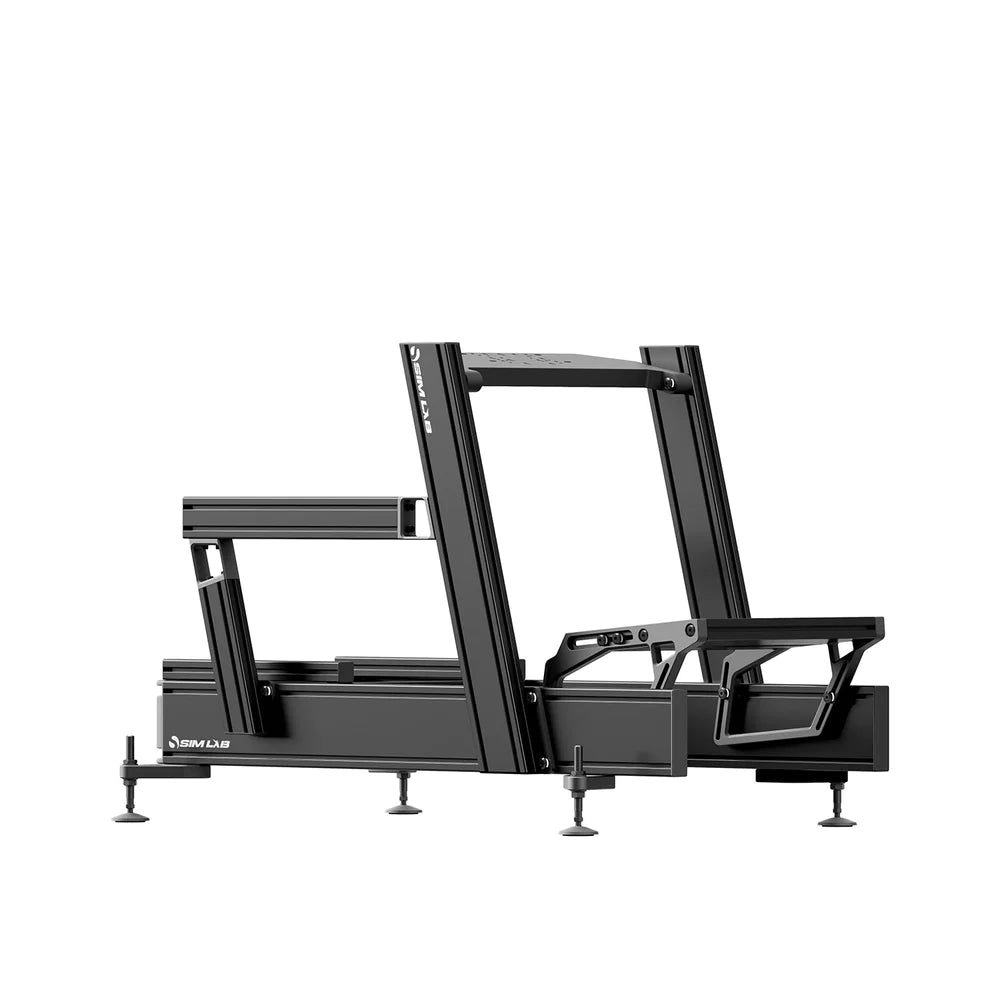

Sim-Lab P1X Pro Sim Racing Cockpit aluminum frame with adjustable design for high-performance racing setup.
Sim-Lab P1X Pro Sim Racing Cockpit with driver in action, showcasing its stability and adjustability for demanding sim racers.

Sim-Lab P1X Pro Sim Racing Cockpit

Trustpilot

Sim-Lab's 160x40 aluminium cockpit for direct drive wheelbases and high-end pedals.

  • Uprights on sandwich plates and pre-drilled holes, side mount for shifter or handbrake included
  • Wheelbase mount variants: front mount, wheel deck or Fanatec DD mount; footprint 1350 x 580 mm

Note! Seat, seat brackets and monitor mount are not included.

Sim-Lab Bucket Seat Bracket Set + Seat slider with aluminum construction and black powder coating. Sim-Lab Bucket Seat Bracket Set + Seat slider €82,00 EUR
Sparco seat slider adjustable for Sim-Lab seat brackets, suitable for all side-mounted bucket seats. Sparco seat slider €42,00 EUR
Variant
Variant: Front mount
Sale price€800,00 €802,00
incl. VAT
White map location pin icon on a bright red background

All products are dispatched from our own warehouse.

Sim-Lab guarantee: 3 years
Sim-Lab SLC101/SLC102/SLC103 3

Commercial guarantee of durability offered by Sim-Lab - free of charge, covering the whole product. Your legal guarantee rights are not affected. Guarantee terms

EU harmonised notice on the legal guarantee of conformity

Business customers: the same manufacturer terms apply to B2B orders.

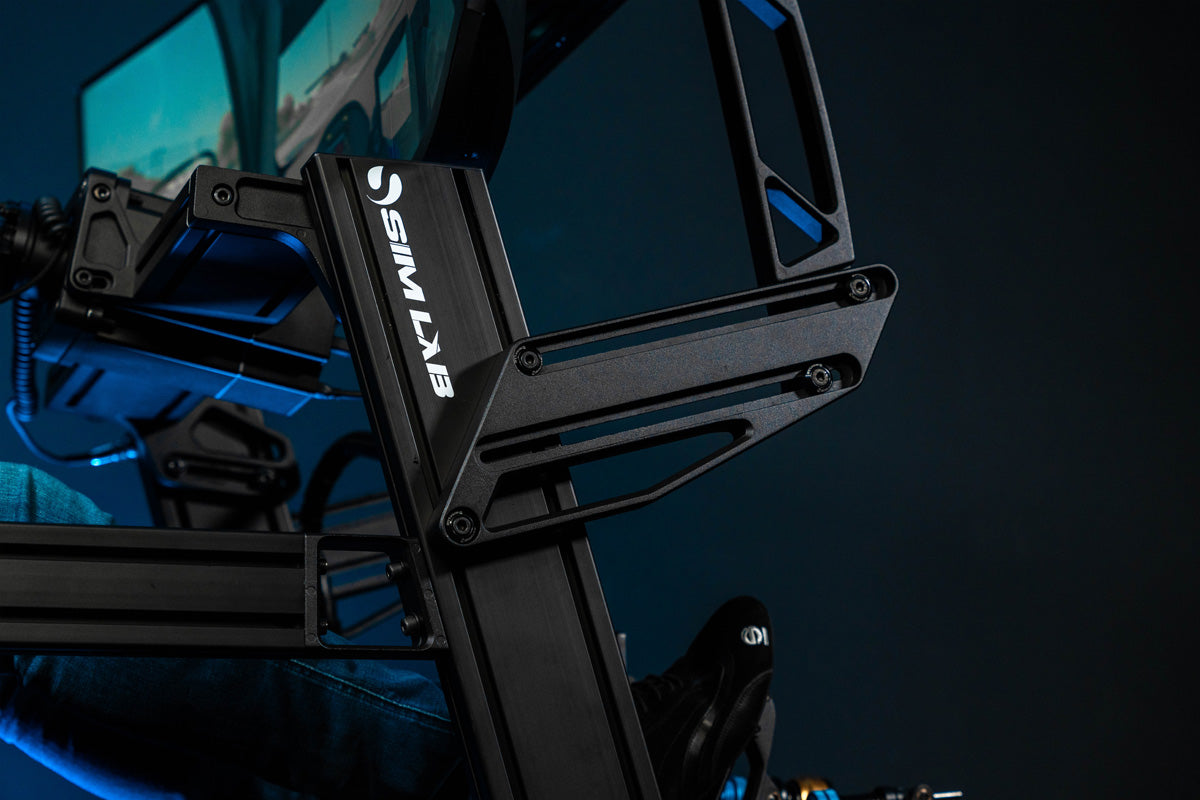

Sim-Lab P1X Pro - angled upright bolted to the side rail with a Sim-Lab sandwich plate

Sim-Lab P1X Pro - the P1X frame on sandwich plates instead of corner brackets

The Sim-Lab P1X Pro stands on two 1350 mm side rails of 160x40 aluminium profile. Its 120x40 uprights are clamped to the rails between sandwich plates and bolted through holes drilled at the factory, where the original P1X used corner brackets. Every joint has one defined position, which is why Sim-Lab calls the build much easier and quicker.

Footprint 1350 x 580 mm (680 mm at the widest point), height 770 mm, 3-year Sim-Lab warranty.

Sim-Lab P1X Pro front mount with a direct drive wheelbase and steering wheel on top of the uprights

Front mount or wheel deck - choose by your wheelbase

On the Sim-Lab P1X Pro the front mount holds the wheelbase by its front face, so no deck sits under it and the legs get the most room. Sim-Lab recommends this variant for direct drive wheelbases with front mounting holes, such as the Simucube 3 Sport, Pro and Ultimate and Sim-Lab's own DDS TorqueSync. The wheel deck holds the wheelbase from below and suits almost every base without front holes. Sim-Lab lists the Simagic Alpha EVO only for the wheel deck, not for the front mount. The third variant, Fanatec DD Mount, and the full list per variant are in the Compatibility tab.

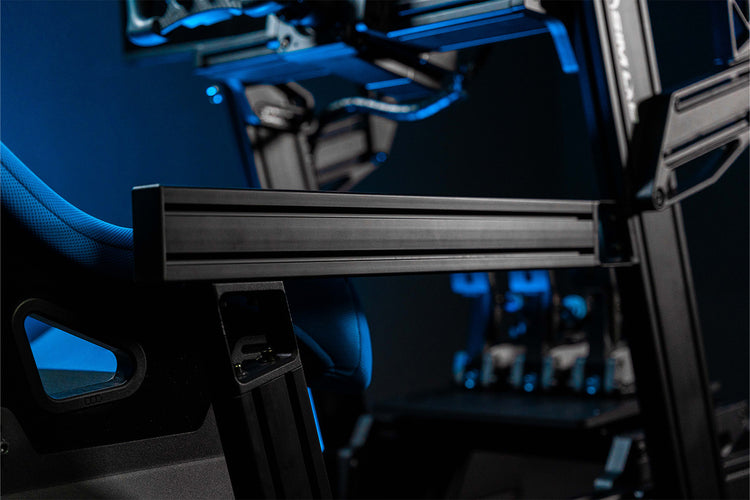

Sim-Lab P1X Pro side mount profile for a shifter or handbrake next to the seat

Side mount included - shifter or handbrake without a separate stand

The Sim-Lab P1X Pro ships with a side mount made of 80x40 profile for a shifter or handbrake, so neither needs its own stand or an extra bracket kit.

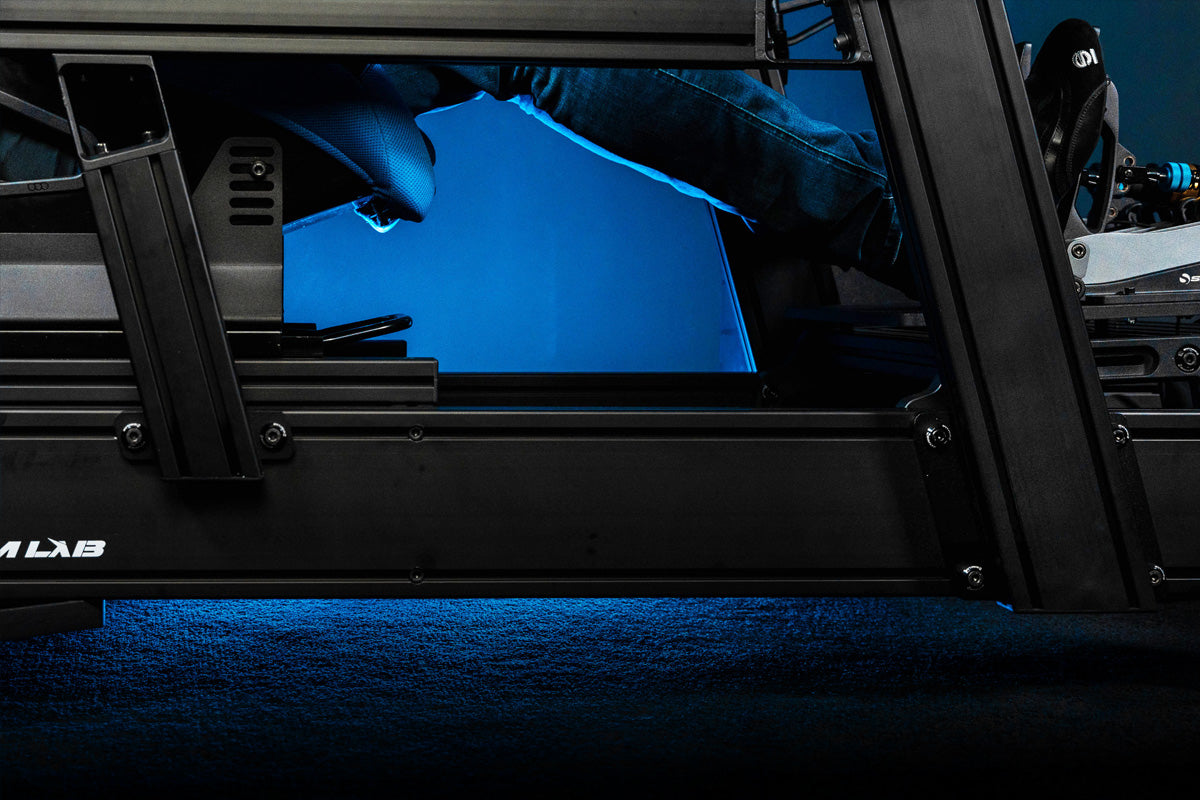

Sim-Lab P1X Pro 160x40 side rail with seat, pedals and the driver's legs

Before you order - seat, pedals and the shape of the uprights

The P1X Pro pedal deck is a 160x40 and an 80x40 profile, 450 mm wide, with slot nuts in three sizes for different pedal sets; the Sim-Lab XP1, Simagic P1000, Heusinkveld Sprint and Ultimate+ and the Simucube ActivePedal are on Sim-Lab's compatibility list. The seat goes on a Sim-Lab bucket seat bracket set, sold separately with or without a seat slider - the Sparco Grid Q mounts this way.

The uprights of the P1X Pro are angled, so moving a dash or button box up or down also moves it forward or back. If you plan to build a lot onto the uprights, the Sim-Lab P1X Ultimate has straight, fully slotted uprights on the same frame.

Manual, Downloads and Technical details

Manual
Sim-Lab P1X Pro assembly manual (PDF)
All Sim-Lab manuals and downloads


Technical Details

  • Wheelbase mount: front mount, wheel deck or Fanatec DD mount - per selected variant
  • Side rails: 160x40 aluminium profile, 1350 mm
  • Uprights: 120x40 aluminium profile, angled, 850 mm
  • Pedal deck: 160x40 + 80x40 profile, 450 mm wide
  • Feet: 4 adjustable feet with threaded ball-joint rod
  • Tools needed (per manual): 5 and 6 mm hex keys, 24 mm wrench, mallet, tape measure
  • Color: black
  • Dimensions: 1350 x 580 mm (widest point 680 mm) x 770 mm (L x W x H)
  • Warranty: 3 years


Monitor mounting - sold separately

Compatibility

Front mount version

  • Sim-Lab DDS26 TorqueSync™
  • Sim-Lab DDS39 TorqueSync™
  • Bodnar 50 series
  • Lenze MCS12 series
  • MiGe 130ST (small, big)
  • Simagic Alpha Mini DD, Ultimate
  • Simucube 2 & Simucube 3 Sport, Pro, Ultimate
  • VRS DFP15
  • VRS DFP20 / uDFP20


Wheel deck version

  • Sim-Lab DDS26 TorqueSync™
  • Sim-Lab DDS39 TorqueSync™
  • Asetek DD wheelbase Forte/Prima/Invicta
  • AccuForce V1, V2
  • Conspit ARES (inc. Platinum version)
  • Fanatec CSL, CSW, CSL-DD, GT DD-PRO, ClubSport DD, ClubSport DD+, DD1, DD2, Podium DD
  • Logitech G25, G27, G29, G920/G923
  • Logitech G Pro, RS50
  • Moza R3, R5, R9 V3, R12 V2, R21 Ultra, R25 Ultra
  • Thrustmaster T248, T300/TX, T500RS, T-818
  • Thrustmaster TC-PS, TS-XW, TG-T, TG-T II, T598
  • Simagic Alpha Evo Sport/Pro
  • Simucube 3 Sport, Pro, Ultimate


Fanatec DD mount version

  • Fanatec DD1
  • Fanatec DD2
  • Fanatec CSL DD
  • Fanatec DD Pro
  • Fanatec ClubSport DD
  • Fanatec ClubSport DD+
  • Fanatec Podium DD


Pedals

  • Sim-Lab XP1
  • Asetek Invicta & Forte
  • Asetek La Prima
  • BJ Steel F1/GT
  • Cammus pedals
  • Conspit CPP EVO V2 / CPP Lite
  • Cube Controls SP-01
  • Fanatec Clubsport V3, Inverted V3
  • Fanatec CSL / CSL Elite Pedals LC
  • Fanatec CSL Pedals V2
  • Fanatec Elite pedals
  • Fanatec Podium Pedals
  • Heusinkveld Pro, Sprint, Ultimate, Ultimate+
  • Insim Talento
  • Logitech G25, G27, G29, G920
  • Logitech Pro Pedals
  • Logitech G RS
  • Meca Cup Pedals
  • Moza CRP, SR-P
  • Moza CRP2
  • Moza SR-P Lite
  • Moza mBooster
  • PurrPRO
  • Simagic P1000 Pedals
  • Simagic P2000 (with baseplate)
  • SimCoaches P1-3
  • Simjack UT
  • SIMSONN pedals
  • Simtag Iris / Hydraulica
  • SRP Formula-R V5
  • Simtrecs ProPedal GT
  • Simucube Active Pedal
  • Simucube ActivePedal Ultimate
  • SimWorkx Pro pedals
  • Simgrade R7 Pedal Set
  • Simgrade VX-PRO Pedals
  • Thrustmaster T300/TX, T-LCM, T3PA
  • VNM/Venym pedals
  • VRS DirectForce Pro


Note: the Simagic Alpha EVO fits the wheel deck version only - Sim-Lab does not list it for the front mount.

What is in the package?
  • Aluminium profiles and mounting materials
  • Wheel deck mount, front/side mount or Fanatec DD mount - per selected variant
  • Brackets for the front mount wheelbases
  • Pedal deck
  • Side mount for accessories
  • Bolts for mounting seats
  • Adjustable feet set
