Simucube 3 Sport
Simucube authorized reseller logo on a white background

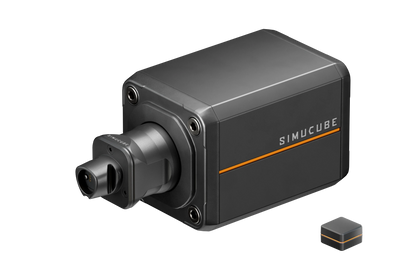

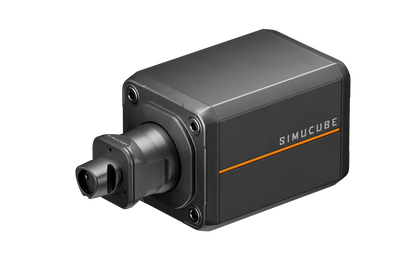

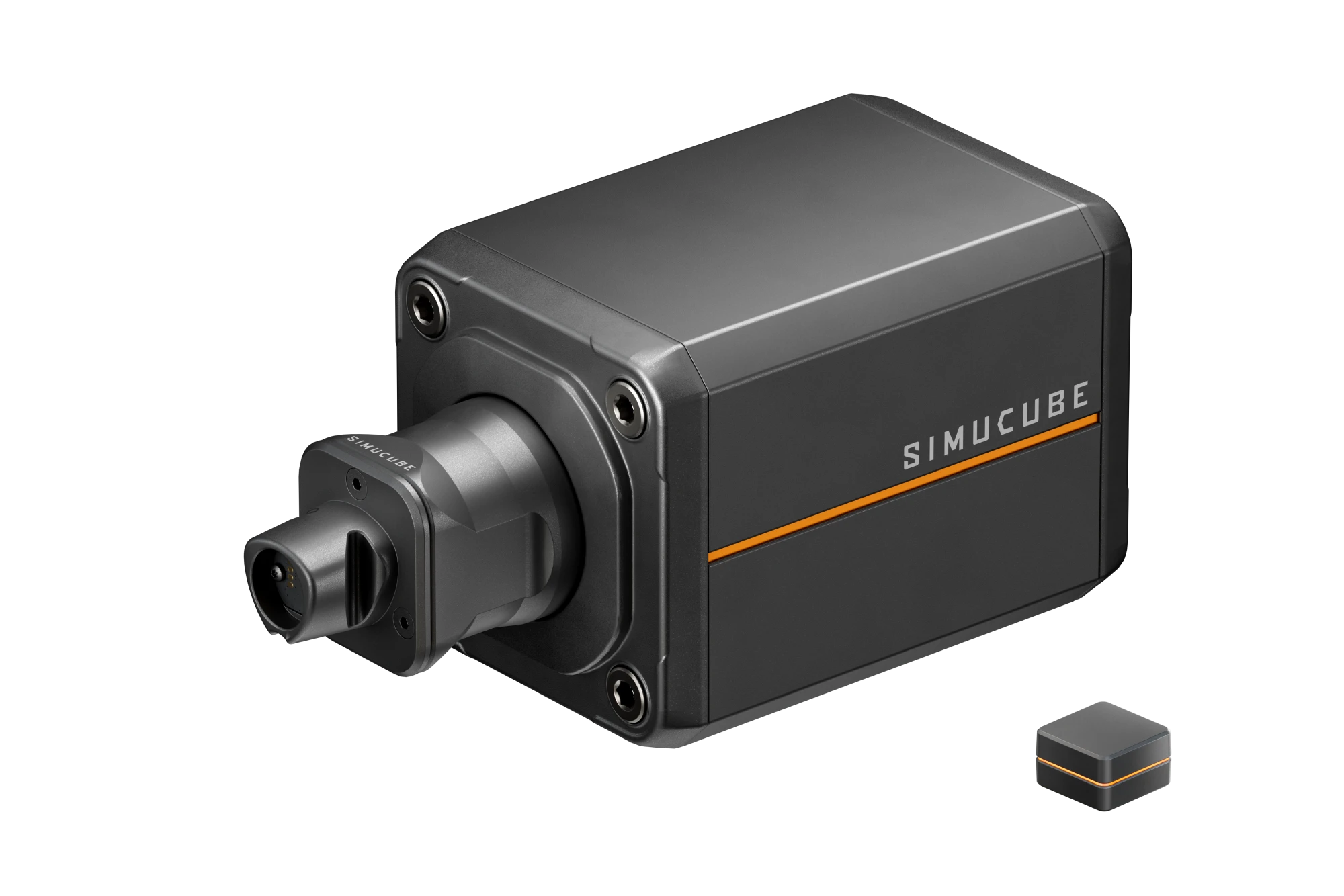

Simucube 3 Sport direct drive motor side view with 15 Nm torque for enhanced driving simulation experience.

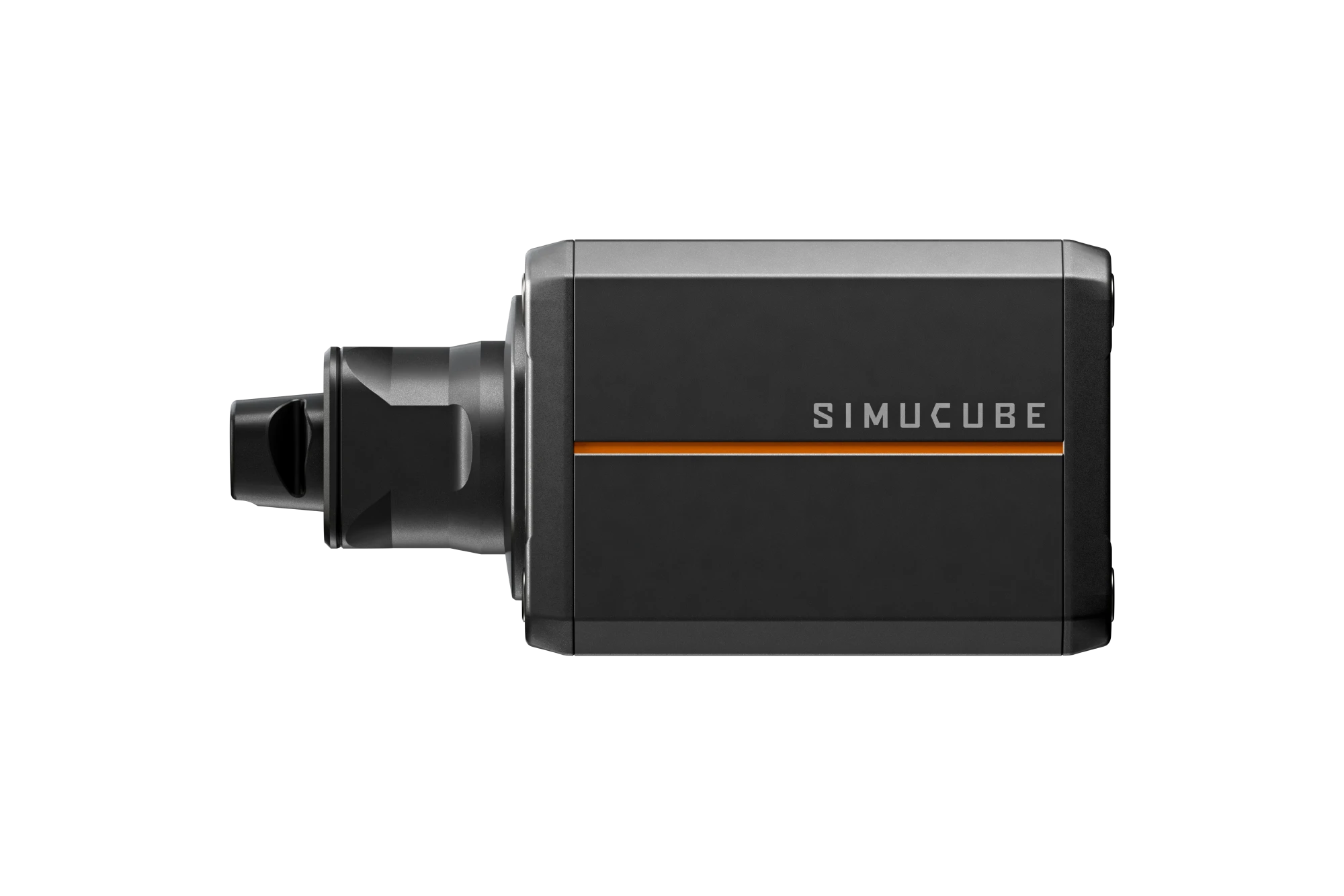

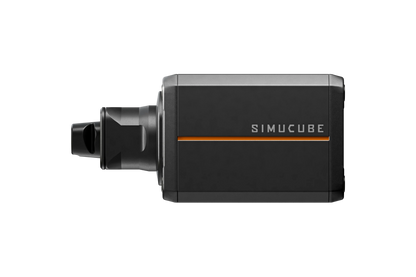

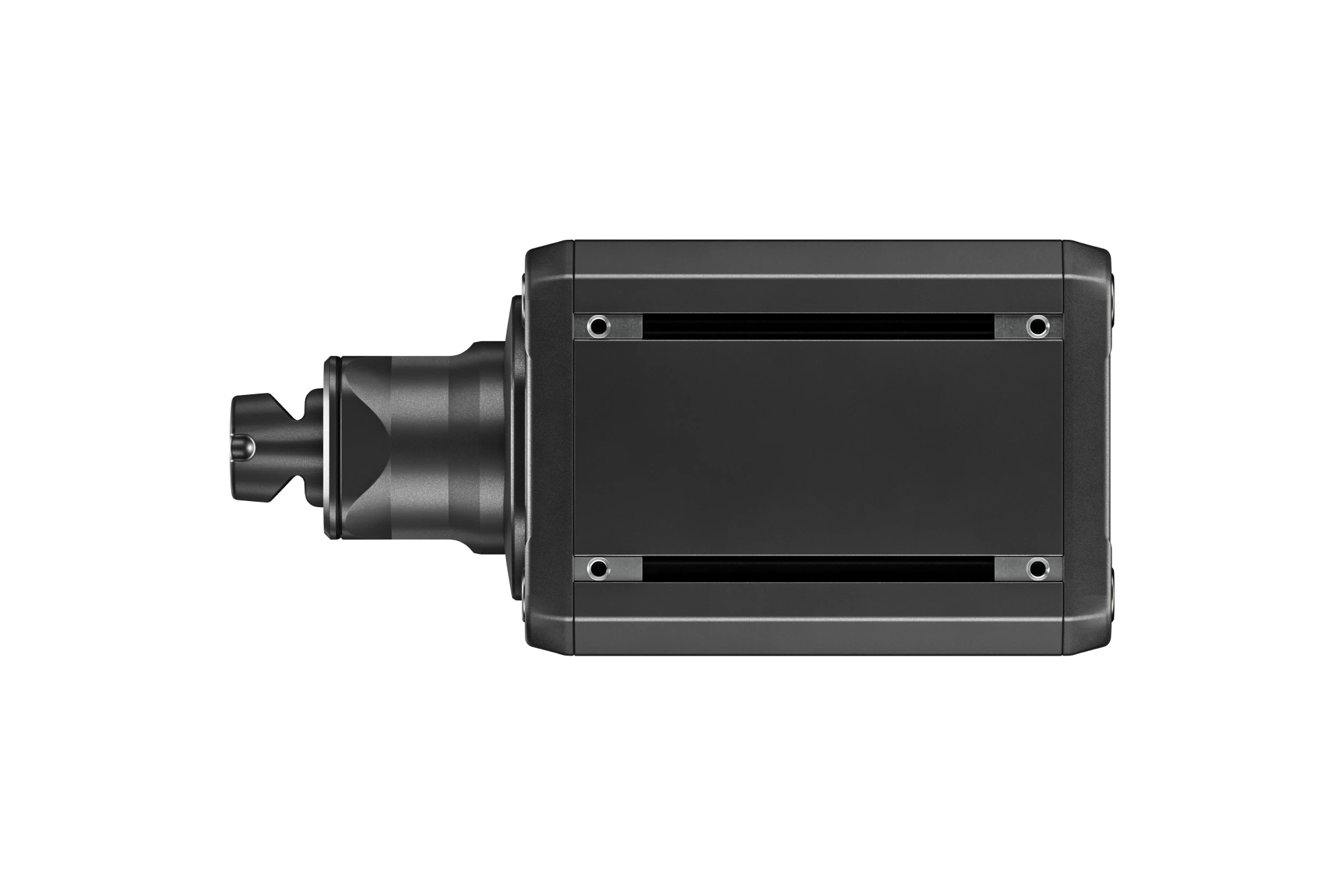

Simucube 3 Sport side view showcasing new-generation SPM motor with 15 Nm peak torque for superior direct drive force feedback.

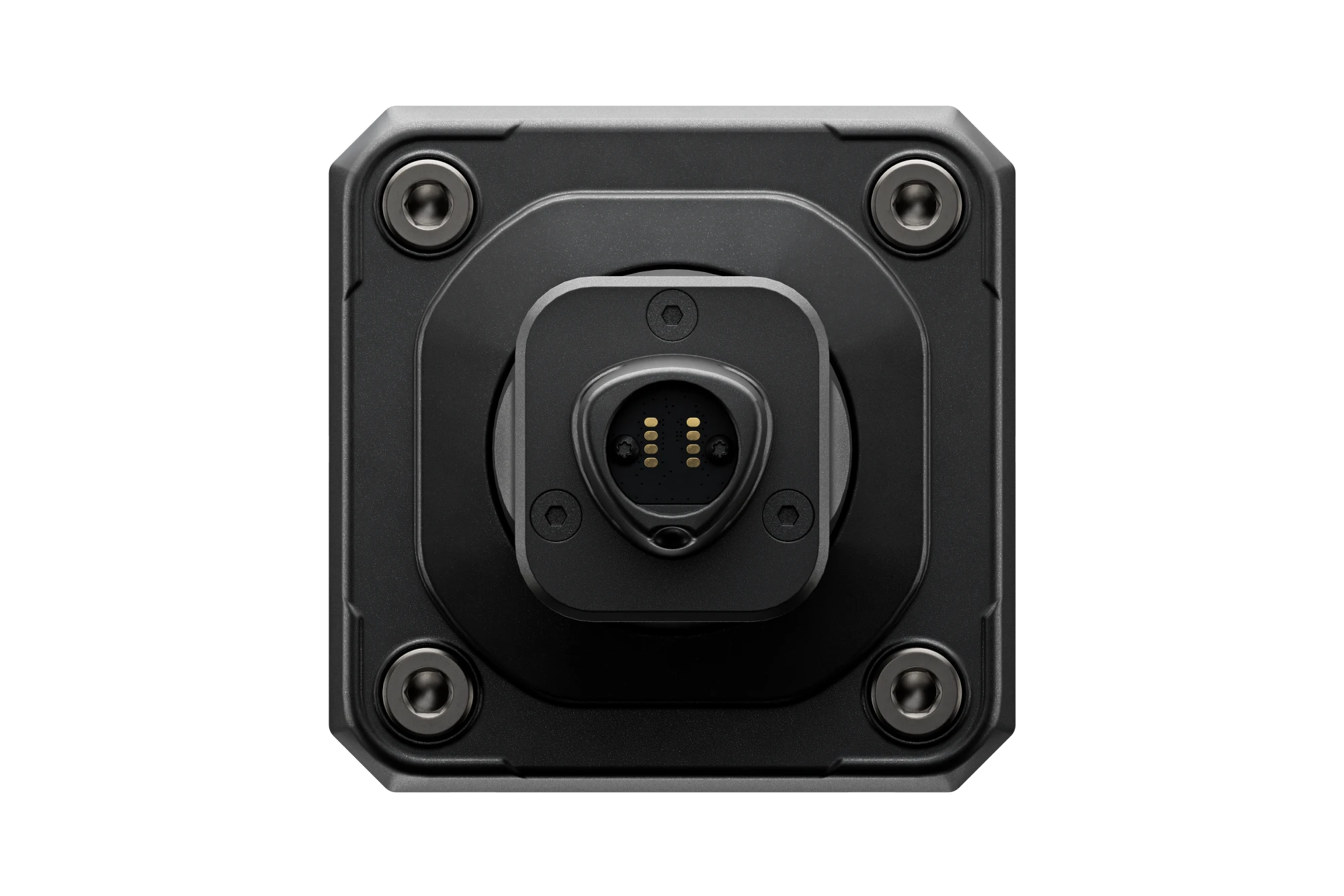

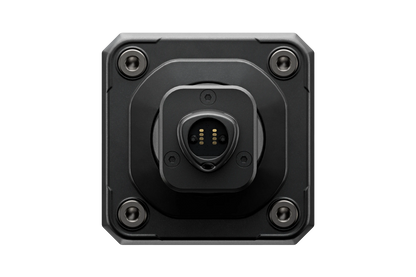

Simucube 3 Sport direct drive force feedback motor front view

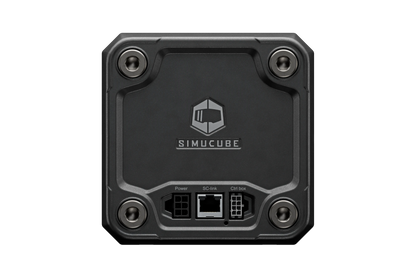

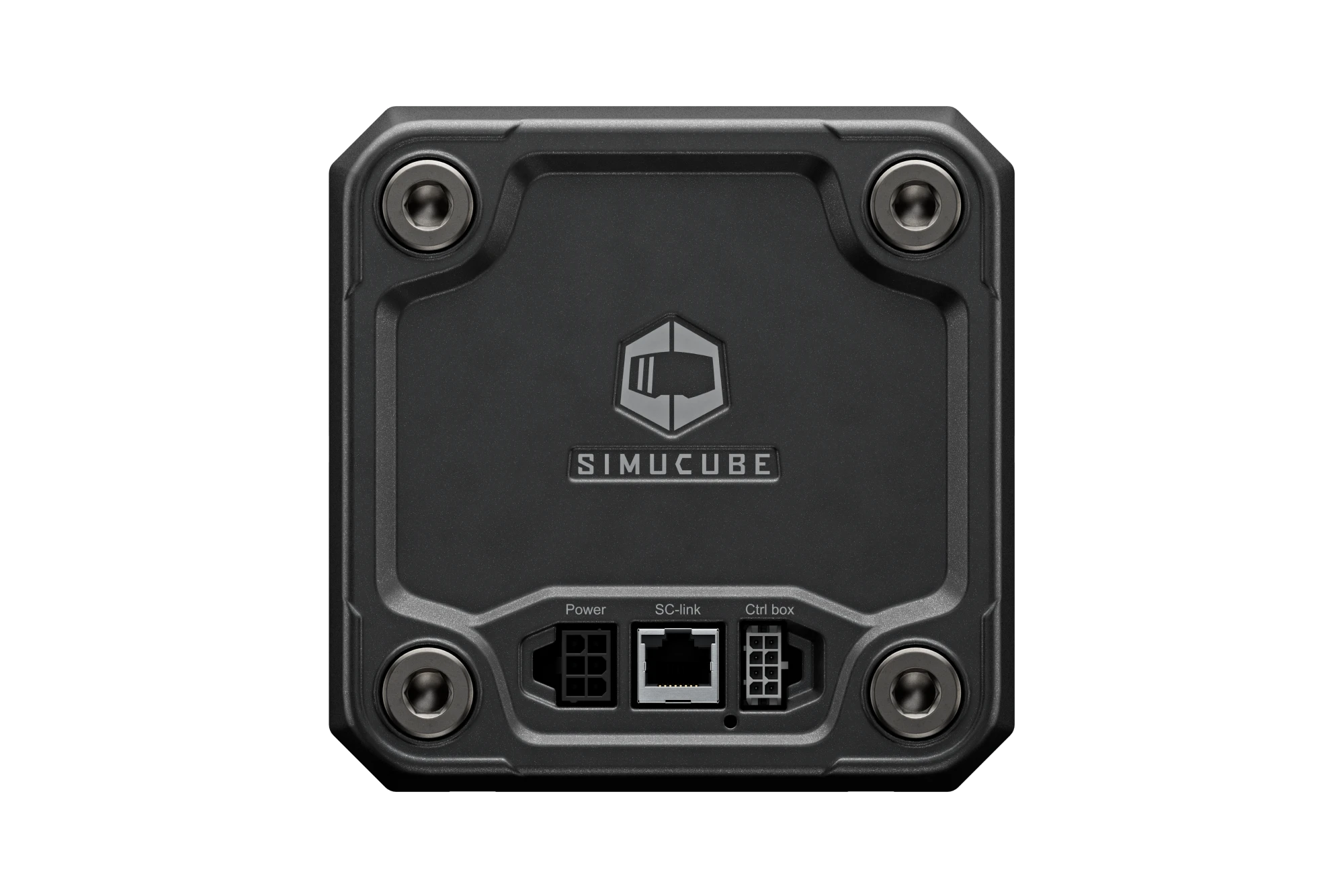

Rear view of Simucube 3 Sport with SPM motor, providing 15 Nm peak torque for precise direct drive force feedback.

Simucube 3 Sport

Trustpilot

The same Simucube 3 platform as the Pro with 15 Nm peak torque - benchmark direct drive in its most accessible form.

  • 15 Nm peak torque, telemetry effects (road texture, ABS, RPM)
  • Contactless LightBridge Quick Release, silent control algorithm
  • 3-year warranty. Designed in Finland, manufactured in the EU

Note! Requires a Simucube Link Hub and Link Quick Release - both sold separately.

Simucube Link Hub connects Simucube gear using one USB, protecting from surges and freeing up space for other devices. Simucube Link Hub €100,00 EUR
Link Quick Release for Simucube 3 - quick release mount for wheels with 70mm hole pattern, precision performance, pre-order now. Link Quick Release for Simucube 3 €149,00 EUR
Show more Show less
Shaft Extension Kit for Simucube 3 with adjustable 100 mm and 200 mm options for enhanced ergonomics and immersion. Shaft Extension Kit for Simucube 3 €204,57 EUR
TSW110 industrial Ethernet switch with RJ45 ports by Teltonika Networks Teltonika Ethernet Switch €58,80 EUR
Simucube 50.8 mm to 70 mm Adapter for quick release wheel attachment and wireless support Simucube 50.8 mm to 70 mm Adapter €67,70 EUR
Ascher Racing Simucube 3 Quick Release Mounting Adapter with screws and wrench, CNC machined aluminum, compatible with Ascher Racing wheels. Ascher Racing Simucube 3 Quick Release Mounting Adapter €19,90 EUR
Simucube 3 70 mm Adapter for customizing wheelbase connection with industry-standard 70 mm mounting pattern Simucube 3 70 mm Adapter €47,00 EUR
€1.277,97
incl. VAT
Simucube guarantee: 3 years
Simucube SC3SPORT-EU-US 3

Commercial guarantee of durability offered by Simucube - free of charge, covering the whole product. Your legal guarantee rights are not affected. Guarantee terms

EU harmonised notice on the legal guarantee of conformity

Business customers: the same manufacturer terms apply to B2B orders.

The Simucube 3 platform, in its most accessible form

The Sport has the complete Simucube 3 generation inside - the new control algorithm, the Link Quick Release and Tuner 3 - driven by a 15 Nm SPM motor in the lightest, most compact body of the range.

Simucube 3 Sport

  • 15 Nm peak torque
  • Power and data through the Link Quick Release (with compatible wheels)
  • Mounts from the front or from below
  • 3-year warranty
  • The most affordable Simucube wheelbase
Simucube advanced racing simulator motor with glowing circuit and dynamic design elements.

Flagship response in the lightest body

The Link Hub reads the Sport at the same rate as the Ultimate, so the delay between the car losing grip and your hands knowing about it is no longer on the entry model. At 8.7 kg and 278 mm in length it is also the lightest and most compact Simucube 3 wheelbase - the easiest one to fit on a smaller rig.

Close-up of a precision CNC machining component with a black background, showcasing intricate details and craftsmanship.

Entry price, industrial-grade build

The cheapest way into Simucube is not a cheaper Simucube. The Sport is made from the same industrial-grade materials and components as the Pro and Ultimate, is designed in Finland and built in the EU like the rest of the range, and carries the same 3-year warranty as the Pro.

Supported by Simucube engineers

Simucube’s own engineering team keeps supporting the hardware and the software.

Consistent feel

The control algorithm is tuned for a consistent force feedback feel, lap after lap.

Runs cool

Stays cool even after hours of continuous use.

Quiet operation

Runs whisper-quiet, with a control algorithm designed for silent operation.
Load video: Smucube 3 quick release locking

Zero play, seconds to swap

Take the GT wheel off after practice, click the formula wheel on for the race. The P3G polygon profile of the Link Quick Release centres the wheel by itself and closes with no play, and it is the same part that carries 35 Nm on the Ultimate - at the Sport's 15 Nm it never becomes the weak link.

Transparent view of a machine with visible internal components and wiring, showcasing advanced technology design.

LightBridge - power and data with no wearing parts

Wired quick releases use slip rings or a coiled cable, and both wear out. LightBridge replaces them with a contactless link for power and data: nothing rubs, so nothing wears. The Sport has exactly the same LightBridge as the Ultimate.

Frame

Everything the car feels, you feel

ABS working under braking, revs against the limiter, a rough patch of asphalt: on the Sport each of these arrives as its own effect, driven by the sim's telemetry. The effects are not scaled down for the entry model - they are the same as on the Pro, and you set the strength of each one in Simucube Tuner.

Adjust on the fly with the Control Box

The Control Box is in the Sport's box as standard, not an add-on. Force feedback strength, effects and the settings of any other Simucube device on the Link Hub can be changed mid-session, from the seat.

Glow cube floating above layered surface with orange neon lighting, futuristic design concept

One Link Hub for the whole rig

The Link Hub sits between your Simucube hardware and the PC and takes one USB port for all of it. It guards the rig against USB dropping out mid-race, voltage spikes and grounding faults, and every further Simucube device - ActivePedal, Valo GT-23, a Link wheel - joins through the same hub.

It is sold separately, and one is enough for the whole rig.

Collection of high-performance racing steering wheels for F1 simulation, featuring ergonomic designs and advanced control interfaces.

Simucube Link wheels - a growing ecosystem

The Simucube Link wheel ecosystem is live and growing: Simucube's own Savu Sport and Savu Pro are the natural pairing, the BavarianSimTec Delta Pro SC is available today, and more Link-compatible wheels from GSI, Ascher Racing, Delta Sim Tech, P1sim and SimCore are on the way. Simucube 2 Wireless and USB wheels work too - see the compatibility tab for details.

Savu Sport - the natural pairing

A full-metal GT wheel that matches the Sport's philosophy: the essentials, executed without compromise. Power flows through the attached Link Quick Release, data through the Hub - no battery, no cables.

Simucube Savu Sport · Simucube 3 Sport + Savu Sport bundle

Simucube Tuner 3 - dial in the Sport in minutes

Tuner 3 is built to shorten the time between unboxing and a setup you trust: every change can be felt on the wheel before it is saved, effect strength is set as a curve (the approach ActivePedal owners already know), and the telemetry effects of the Sport have their own settings in the same app.

Manual, Downloads and Technical details

Manual
Simucube 3 Sport manual
Simucube 3 mounting dimensions


Downloads
Simucube Tuner 3.0 download


Technical Details
Dimensions

  • Wheel base dimensions: 135 x 135 x 278 mm
  • Package dimensions: 190 x 300 x 390 mm
  • Mounting: Front and Bottom
  • Mounting hole pattern DIA: 135 mm and 78,4 mm
  • Flange centering feature DIA: 110 mm
  • Wheel base weight: 8.7 kg

Specifications

  • Motor type: Direct drive optimized SPM motor
  • Max torque: 15 Nm
  • Angle sensor: 23-bit absolute (8 000 000 steps)
  • Power supply: 280 W
  • Warranty: 3 years
Compatibility

Windows PC only


Good to know

  • Not in the box: Simucube Link Hub and Link Quick Release - both are required. One Link Hub runs every Link device, so if you already own one for an ActivePedal or Valo GT-23, do not order a second one.
  • To race you need: the wheelbase, a Link Hub, a Link Quick Release, a steering wheel, pedals, a rigid cockpit and a Windows PC.
  • Wheel versions: "SC" wheels (BavarianSimTec Delta Pro SC, Ascher Racing Artura Pro SC...) are the Simucube 3 versions. A non-SC wheel works too, but over a USB cable to the PC - check the variant before ordering.
  • Running an ActivePedal Ultimate or ActivePedal Pro alongside the wheelbase? Add the Teltonika Ethernet Switch to connect everything to the Link Hub.
  • EU version. Warranty is handled by GPerformance - in a warranty case we organise and pay the shipping.


Cockpit compatibility:


Steering wheel compatibility

a) Simucube Link steering wheels - full LightBridge
(Both power and data are transmitted via the Simucube Link Quick Release)

  • BavarianSimTec Delta Pro SC - currently the only wheel with 100% LightBridge integration
  • More Link-compatible wheels from GSI, Ascher Racing and other brands are in development


b) Simucube Savu wheels
(Power is transmitted via the Simucube Link Quick Release; data is transmitted wirelessly via the Simucube Link Hub)


c) Simucube Wireless steering wheels (Simucube 2 wheels)
For example the Ascher Racing Artura Pro SC. These wheels connect wirelessly directly to the Simucube Link Hub; the Simucube Link Quick Release is used for mounting.


d) USB steering wheels
The Simucube Link Quick Release is used for mounting only. Power and data are transmitted via a USB cable connected directly to the PC. For example the Simagic GT Neo or Simagic Neo X wheels (via MagLink).

What is in the package?
  • 1x Simucube 3 Sport wheelbase
  • 1x Power adapter
  • 1x RJ45 Cable
  • 1x AC power cord
  • 1x Quick Start Guide
  • 1x Control box

Fasteners kit

  • 4x M8 washer
  • 4x M6 washer
  • 2x M5 washer
  • 4x M8x35 allen head bolt
  • 4x M8x30 allen head bolt
  • 2x M5x30 allen head bolt
  • 4x M6x16 allen head bolt
  • 2x M5 t-slot nut 8mm slot

Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub
