Technical details:

  • Actuator dimensions: L × W × H: 106 mm | 4.17 in × 92 mm | 3.62 in × 560-660 mm | 22-26 in
  • Architecture: 2 / 3 DOF
  • Actuator stroke: 100 mm | 3,93 in
  • Maximum velocity: 800 mm/s
Compatibility

Qubic System QS-220 actuators Supported games download

  • Compatible with:
    Qubic System QS-CH2 2DOF motion platform - simulating traction loss, braking and accelerating
    QS-BT1 seat belt tensioner
  • With aluminium profile cockpits
What is in the package?

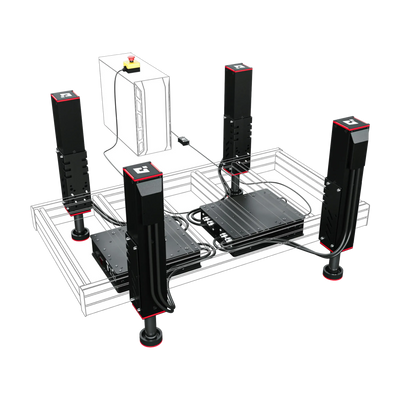

QS-220 3DOF Motion set consists:

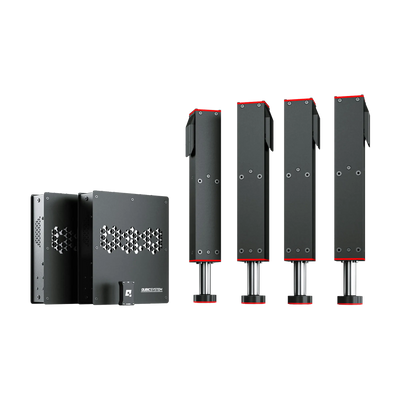

  • 4x QS-220 Linear actuator
  • 2x QS-220 Power cabinet
  • 2× Motion Lock interlink cable with additional 2 m cable
  • 2× M-BUS communication cable
  • 4× Actuator food

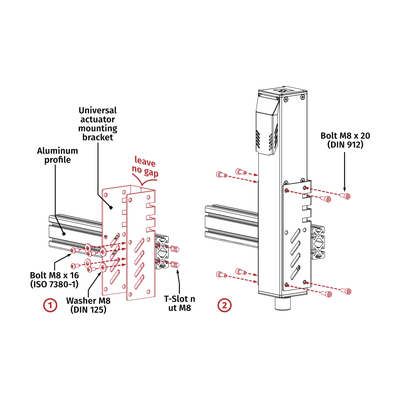

  • 4x Set of universal actuator adapter brackets

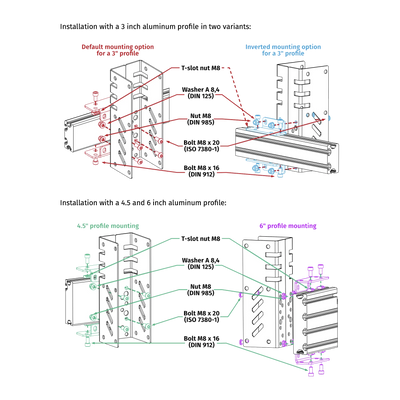

  • 8× Flat face profile adapters
  • 8× Power cabinet mounting plate
  • 4× Stabilising pad
  • Set of mounting fasteners

Each accessory comes in a dedicated box.

POWER CORD
The power cord for QS-220 is provided as a separate component and
is selected based on the electrical standards and socket types applicable in the target market. This ensures compatibility with regional
voltage, frequency, and plug configurations.

What our customers say about this product?

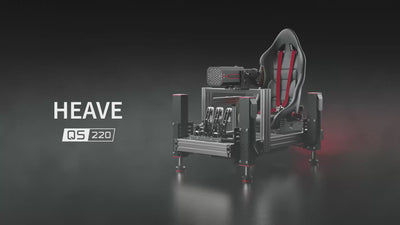

What motion do the QS-220 actuators create?

Full-rig motion: mounted under the cockpit in a 2 or 3 DOF architecture, they move the entire chassis with you and all hardware on it - pitch under braking, roll through corners, and with the third actuator heave over curbs and elevation changes. The whole rig becomes the car body.

What does the 100 mm stroke mean in practice?

Enough travel to render real weight transfer, not just vibration - and at up to 800 mm/s of velocity, the movement arrives as sharply as the telemetry demands. Curb strikes feel like strikes, braking dive builds progressively, and the motion software scales everything to your preference.

Will they fit my cockpit?

A rigid aluminium profile cockpit with mounting per the manufacturer's template is the requirement - the actuators carry and move the whole structure, so flex would blur every cue. Send us your cockpit model before ordering and we will confirm the combination; heavy chassis like the Sim-Lab P1X class are the natural partners.

QS-220 actuators or the QS-H13 seat mover?

Two philosophies: the actuators move everything together for the most coherent sensation, at the cost of space and budget; the QS-H13 seat mover moves only you while the controls stay static - compact and precise. Neither is the compromise; dedicated motion rigs tend toward actuators, shared spaces toward the seat mover.

Can I add traction loss later?

Yes - the QS-CH2 traction loss platform adds the yaw and surge axes on top, so the rear of the rig physically slides when the car oversteers. Actuators + traction loss is the most complete motion architecture Qubic System offers; growing into it in stages is completely normal.
