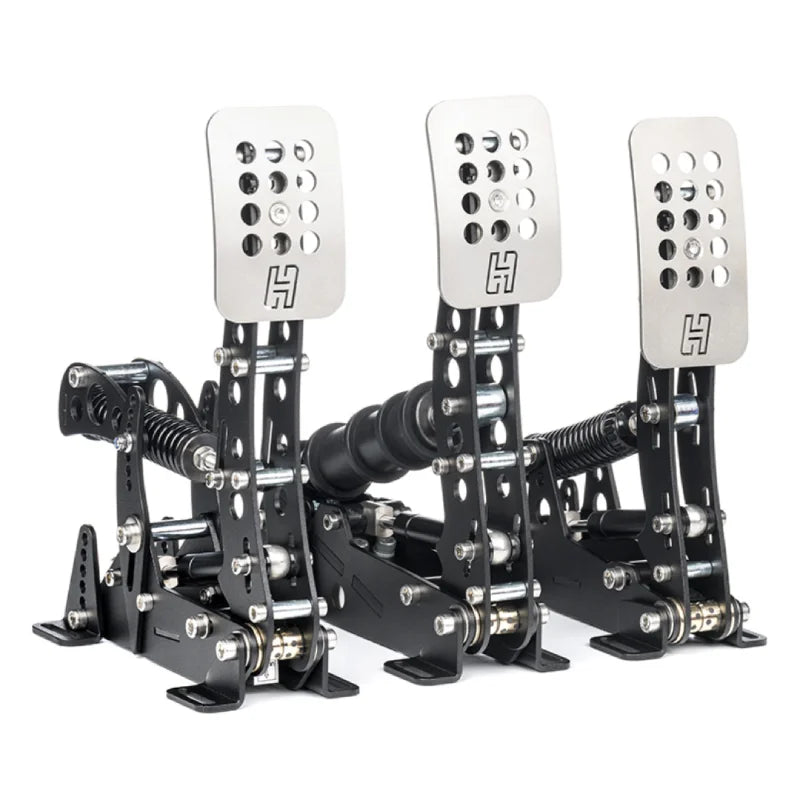

Heusinkveld Sim Pedals Ultimate+ showcasing adjustable pedal geometry and hydraulic damping for realistic racing simulation.
Heusinkveld Sim Pedals Ultimate+ with adjustable pedal geometry and hydraulic damping for realistic FIA Formula racing simulation.

Heusinkveld Sim Pedals Ultimate+

Trustpilot

Heusinkveld's flagship - up to 140 kg of actual brake force, Formula-level braking with 2-way hydraulic dampers.

  • Dual-stage brake with proprietary thermoset elastomers - a concave, race-car force curve
  • Adjustable hydraulic damping on every pedal, 9 brake resistance settings

Note! PC (Windows) only. A rigid, heavy-duty pedal deck is required.

Heusinkveld Ultimate+ clutch pedal for sim racing, high-performance customizable pedal compatible with manual shifter setups. Heusinkveld Ultimate+ clutch €376,00 EUR
Heusinkveld New Ultimate+ Baseplate for secure simulator pedal mounting Heusinkveld New Ultimate+ Baseplate €135,18 EUR
Show more Show less
Heusinkveld Rest Pedal - adjustable and durable pedal support, ideal for simulator comfort and preventing accidental presses. Heusinkveld Rest Pedal €90,20 EUR
Options
Options: 3 Pedal Set
Color
Color: Black
€1.472,95
incl. VAT
Legal guarantee: 2 years
EU harmonised notice on the legal guarantee of conformity

Business customers: the same manufacturer terms apply to B2B orders. Guarantee terms

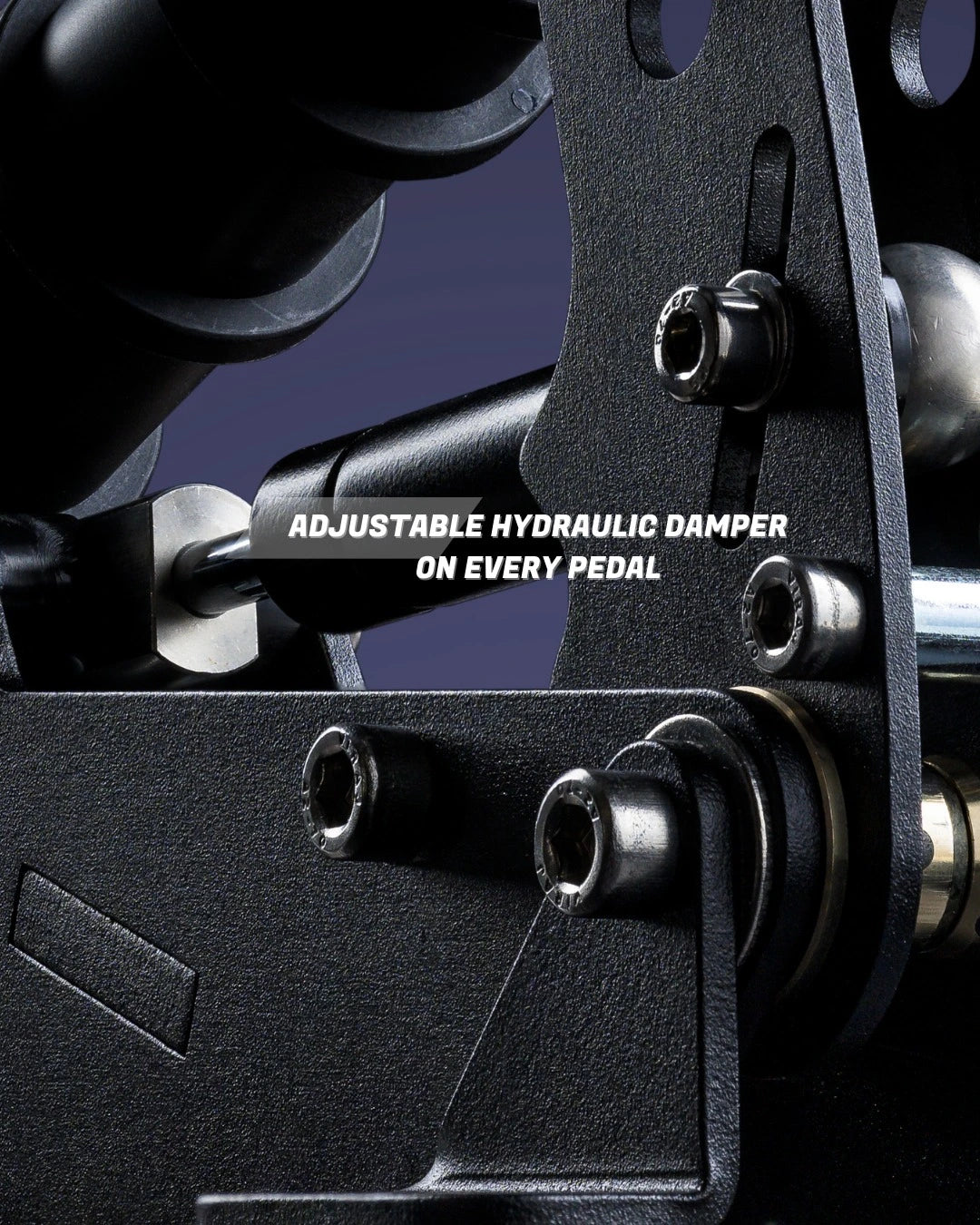

Close-up view of an adjustable hydraulic damper mechanism on a pedal assembly, emphasizing precision engineering.

140 kg on the brake, damped like a real pedal box

The Ultimate+ brake takes up to 140 kg of actual force on a 200 kg loadcell - the pedal load of an F2 or LMP car, where the Sprint stops at 65 kg. What sets it apart is not only the number but the damper: a 2-way hydraulic unit resists the pedal on the way in and on the way out, so it loads and releases like a pressurised brake system rather than snapping back on a spring.

Drivers from FIA formula categories and national touring car series use these pedals for exactly that reason - trail braking and release modulation feel like the real car.

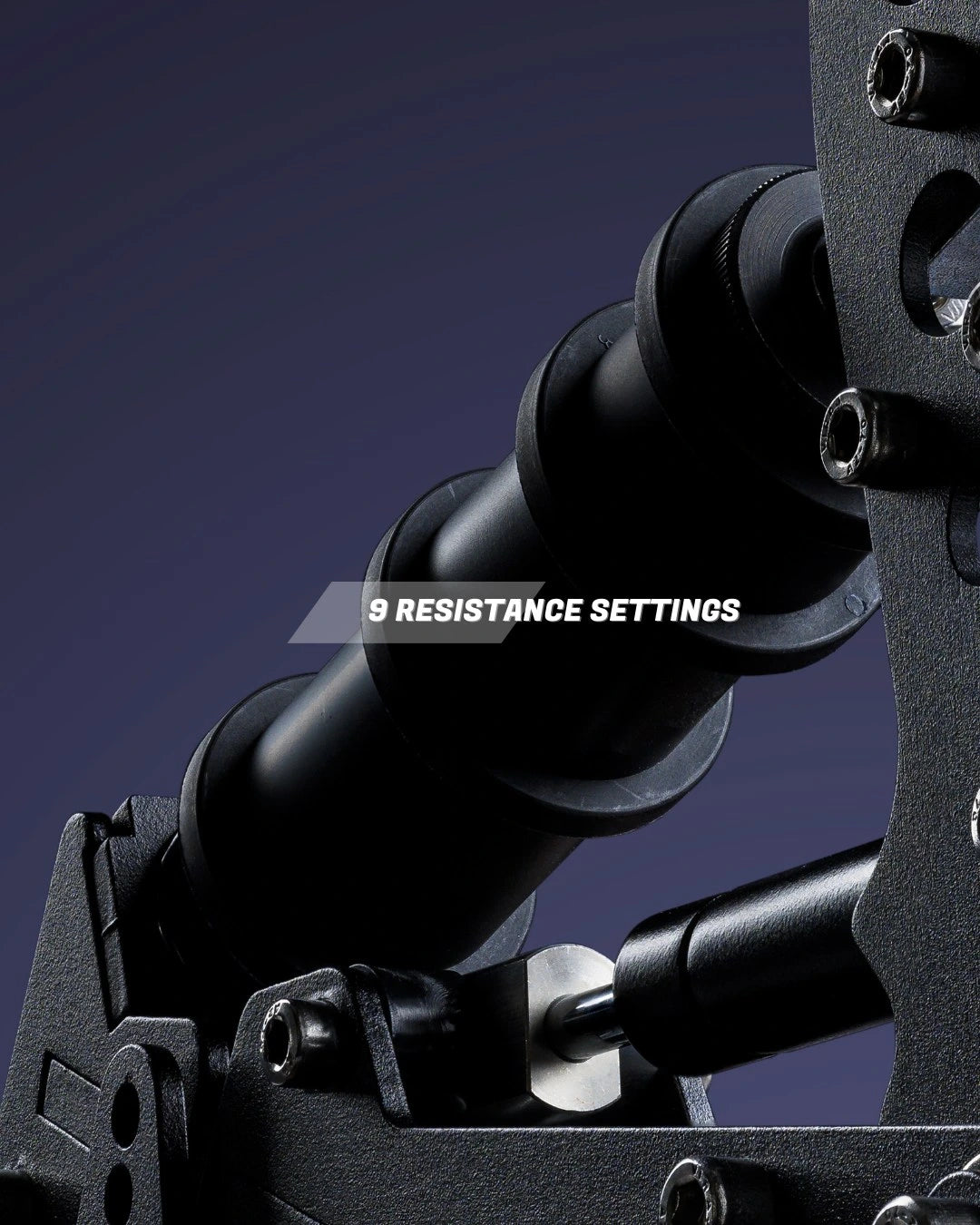

Close-up of a machine part with text '9 Resistance Settings' on a dark background, showcasing fitness equipment adjustability.

Hydraulics on every pedal

Braking sets the rotation into the corner; the throttle carries the car from apex to exit. The Ultimate+ damps both: the brake and clutch run 2-way dampers, the throttle a 1-way damper that resists the ingoing stroke and smooths your application the way it does in many real race cars. Every damper is adjustable, and the sensors sit outside the hydraulic circuit, so the pedals keep working even with a damper removed.

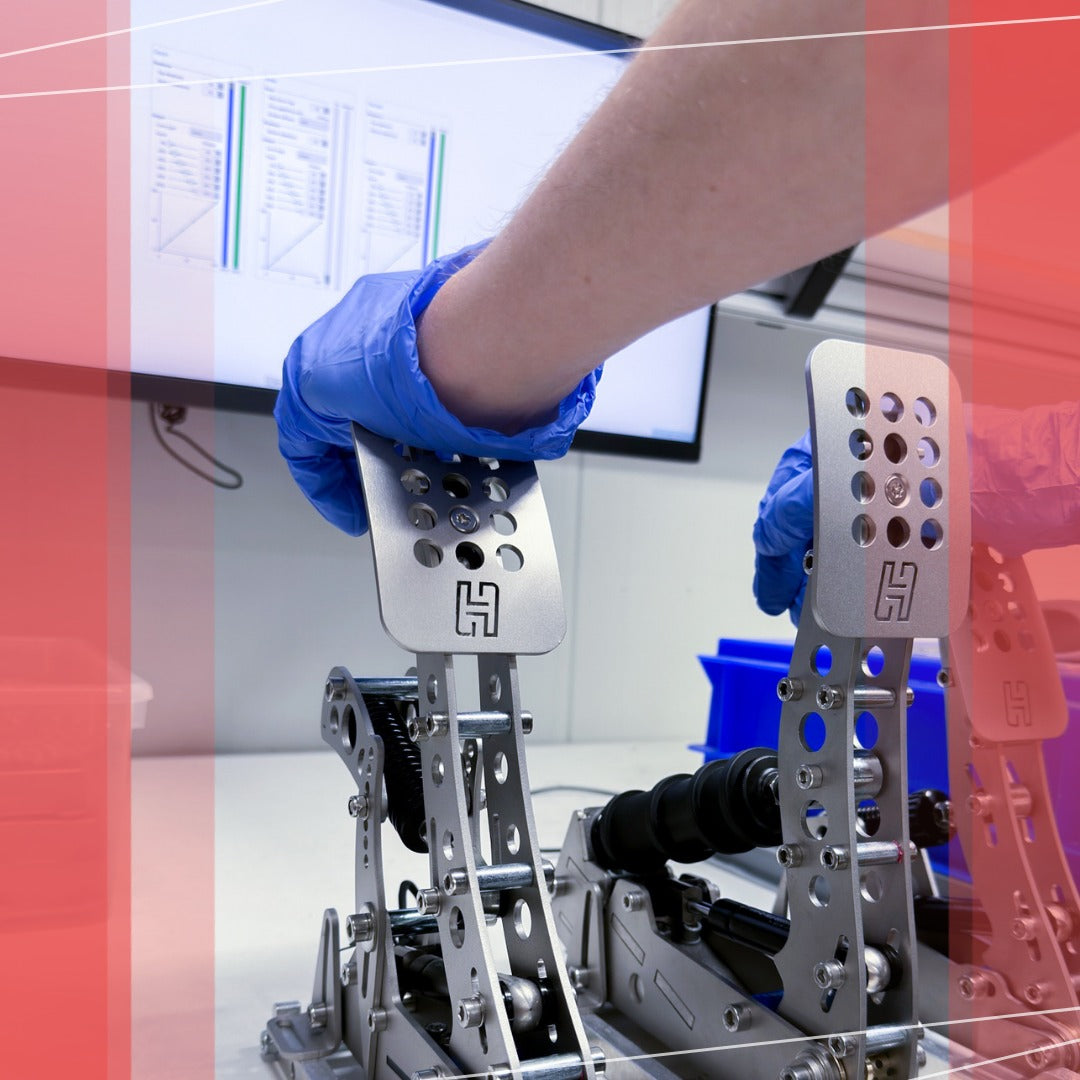

Close-up of a person's hand in a glove adjusting metal racing pedals in a tech lab with a screen displaying data in the background.

Elastomers that do not fade

Instead of rubber bumpers, the Ultimate+ brake uses Heusinkveld's own injection-moulded thermoset elastomers. They give a concave force curve - soft at the top, hardening fast as the load builds - and automated testing shows no measurable change after one million cycles. Nine resistance settings take the pedal from very soft to extremely stiff; the structure is CNC laser-cut, glass-bead-blasted stainless steel throughout.

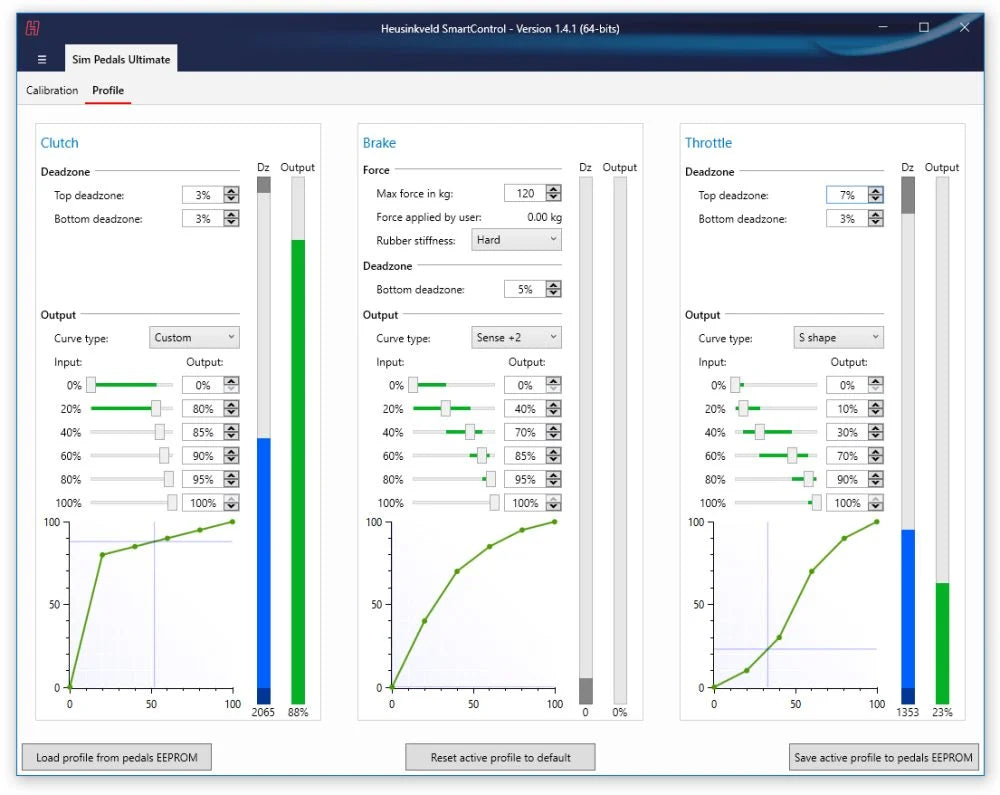

Sim Pedals Ultimate software interface showing calibration settings for clutch, brake, and throttle.

SmartControl - change it while you drive

The external controller box runs SmartControl: output curves, deadzones and maximum brake force are mapped in software, with no recalibration in the sim afterwards. SmartControl Live goes one step further and lets you switch profiles from the rig mid-session - a softer brake map for a wet stint, a stiffer one for qualifying - without leaving the seat.

Manual, Downloads and Technical details

Manuals
Heusinkveld Ultimate+ manual (PDF)
Heusinkveld Ultimate+ quick start guide (PDF)


Downloads
Heusinkveld SmartControl and SmartControl Live download


Technical details:

  • Brake: up to 140 kg of actual force at the footplate, 200 kg loadcell - comparable to F1 and LMP pedal loads
  • Brake mechanism: dual-stage - adjustable coil spring for the pad-to-disc gap, then injection-moulded thermoset elastomers with a concave force curve; 9 resistance settings
  • Damping: adjustable 2-way hydraulic dampers on brake and clutch, 1-way damper on the throttle; maintenance-free, sensors independent of the hydraulic circuit
  • Sensors: loadcells on every pedal - force on the brake, position on throttle and clutch; true linear output, no wear
  • Adjustment: pedal angle, height, travel and spring preload on every pedal
  • Material: CNC laser-cut stainless steel, glass-bead-blasted; designed with CAD and FEA
  • Durability: elastomers show zero performance degradation after 1 million duty cycles
  • Electronics: external USB controller box, plug and play
  • Software: SmartControl and SmartControl Live - curves, deadzones, brake force, unlimited profiles, on-the-fly profile switching
  • Certification: CE
  • Warranty: 2 years
Compatibility

PC only (Windows 10 or newer) - connects via USB. Not compatible with Xbox or PlayStation.


Cockpit compatibility
Brake forces of up to 140 kg call for a rigid, heavy-duty pedal deck:


Simucube ActivePedal integration
The Ultimate+ pairs with a Simucube ActivePedal brake out of the box - its throttle and clutch work without any adapter:

What is in the package?
  • 1x throttle pedal with 1-way hydraulic damper
  • 1x brake pedal with 2-way hydraulic damper
  • 1x clutch pedal with 2-way hydraulic damper (3-pedal set only)
  • 1x USB controller box + USB cable
  • Mounting hardware and installation tools
  • Printed manual

A baseplate is not included - see the Ultimate+ Baseplate if your cockpit has no heavy-duty pedal deck.
