Conspit CPP LITE hydraulic pedals

Save 22%

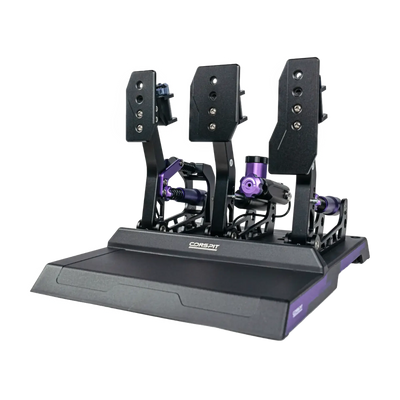

Conspit CPP LITE hydraulic pedals for sim racing with load-cell technology and advanced hydraulic system for precision and durability.

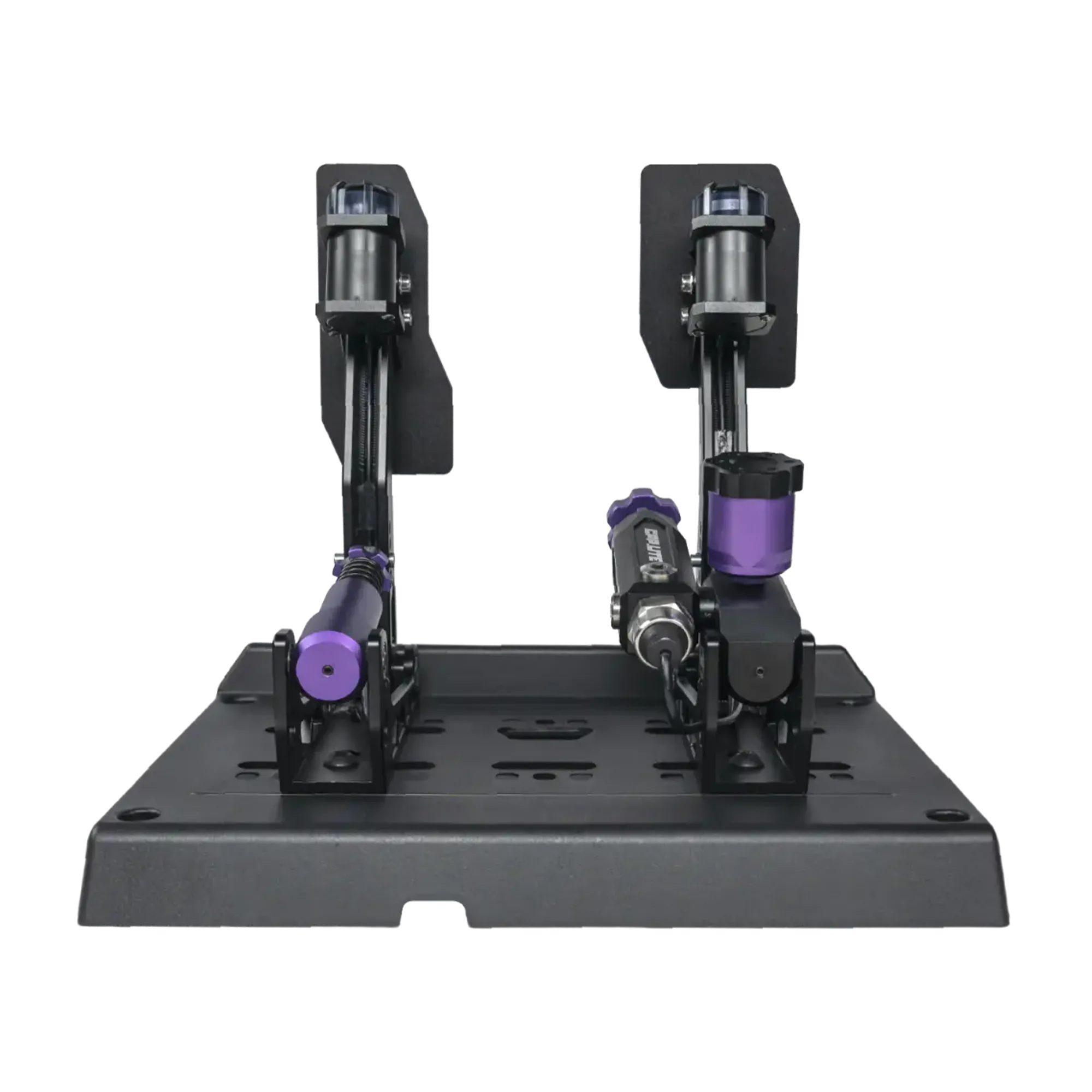

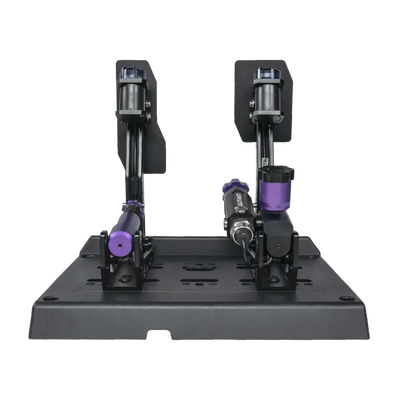

Conspit CPP LITE hydraulic pedals for sim racing, featuring a load-cell brake with advanced hydraulic system and optimized durability.

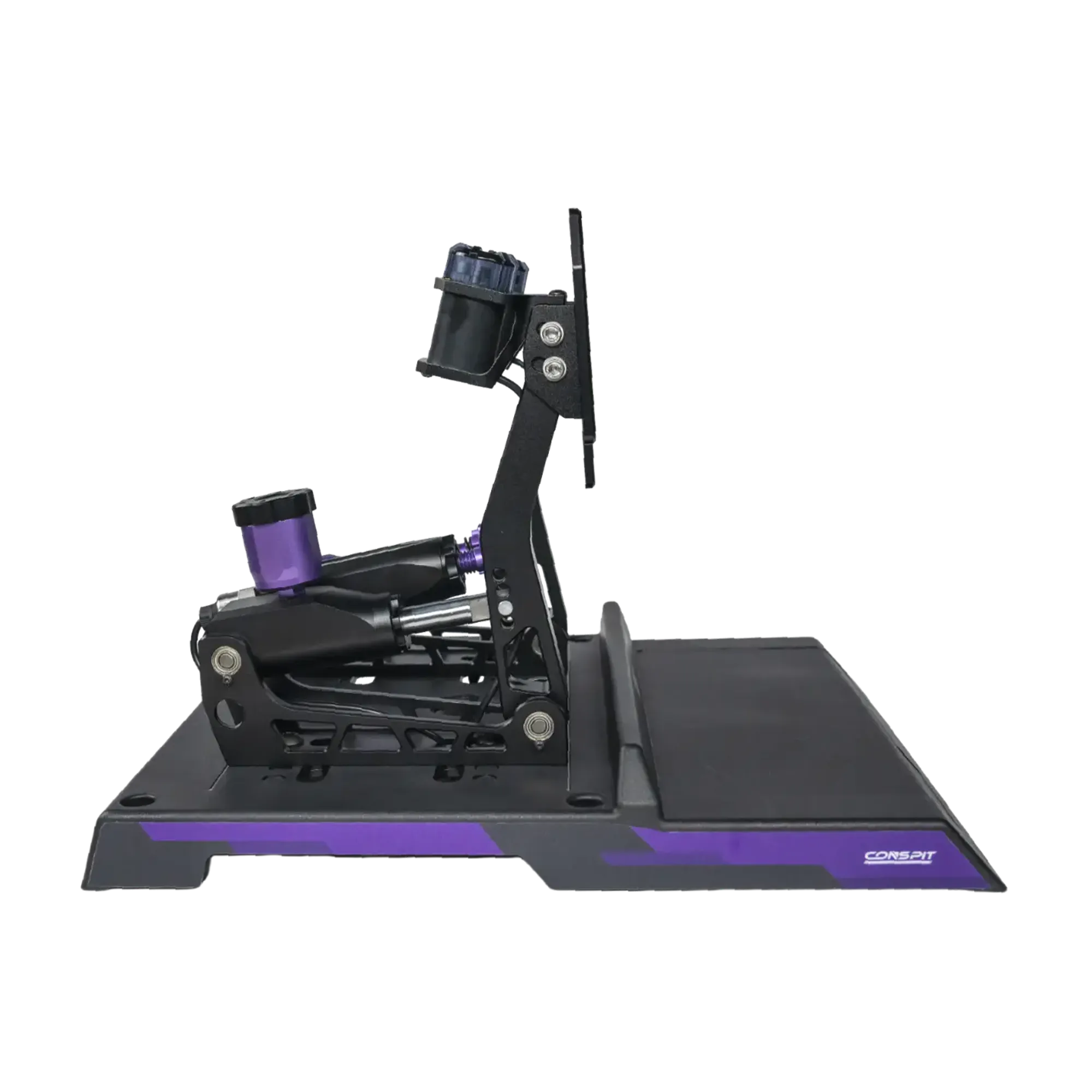

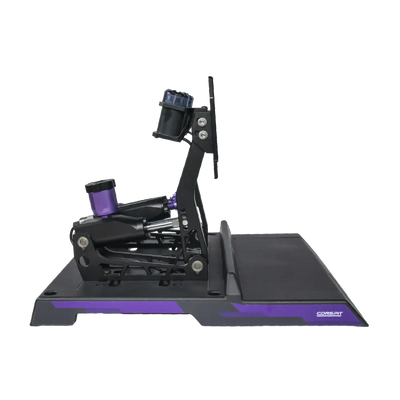

Side view of Conspit CPP LITE hydraulic pedals showing load-cell technology and hydraulic system for sim racing precision.

Conspit CPP LITE hydraulic pedals

Hydraulic braking and haptic feedback in one set - at a price that used to buy neither.

1.5-gen monoblock hydraulic brake with a 10 MPa automotive-grade pressure sensor
M-DVF vibration motors on every pedal; tool-free tuning once installed

Note! PC only.

Version: 2-pedal set

2-pedal set
3-pedal set

Product variants

€483,00 €619,00You save €136,00

incl. VAT

Frequently bought together

Shipping costs and estimated delivery time?

Our webshop is connected directly to DHL and UPS systems - you'll see real-time shipping prices and accurate delivery date estimates at checkout, based on your address. Every shipment is fully insured.

FREE DHL Economy/UPS Standard shipping for orders over 390€ and FREE DHL Express/UPS Express Saver over 1190€.

DHL Express 12:00

delivery by 12:00 noon on the next business day in many EU destinations
orders placed before 16:30 are dispatched the same day
limitations: max. 27 kg, not available for cockpits or seats

DHL Express

next-business-day delivery in many EU destinations
orders placed before 16:30 are dispatched the same day
limitations: max. 27 kg, not available for cockpits or seats

UPS Express Saver

the faster UPS option, with next-business-day delivery in many EU destinations
orders placed before 15:00 are dispatched the same day
limitations: max. 37 kg, not available for cockpits or seats, max. 3000€ order value

DHL Economy

reliable delivery at a lower cost
orders placed before 16:30 are dispatched the same day
no weight limit - suitable for cockpits and seats

UPS Standard

our lowest-cost shipping option
orders placed before 15:00 are dispatched the same day
no weight limit - suitable for cockpits and seats
free Saturday delivery in many larger cities in the UK, DE, FR, NL, BE, IT, ES and PL - note: the delivery estimate at checkout doesn't yet show Saturday as a delivery day, so your order may arrive a day earlier than estimated
max. 3000€ order value

Warranty, exchanges and returns

Warranty and legal guarantee

The manufacturer's warranty period for this product is shown below the Add to cart button. Some brands offer longer coverage - Simucube and Sim-Lab products come with a 3-year manufacturer's warranty, and the Simucube ActivePedal Ultimate with 5 years.

If you buy as a consumer, you also have a minimum two-year legal guarantee from GPerformance as the seller. The manufacturer's warranty is additional and does not replace or limit your statutory rights.

If something goes wrong, contact us - we'll handle the claim for you, including any coordination with the manufacturer. You don't have to deal with anything yourself, and shipping cost is on us.

Need help choosing?

If you're not sure whether a product is compatible with your setup, get in touch before ordering. We'll help you pick the right option. Honest advice is always free.

Product exchange within 14 days

Sometimes gear feels different on your rig than you expected - force feedback, pedal response, wheel ergonomics. That's fine. Within 14 days of delivery, you can request an exchange for a different product or variant. The product just needs to be in good condition, complete and returned in its original box - short testing on your rig is fine.

Exchanges are meant for genuine purchases, not for trying out products. If you're unsure what suits your setup or driving style, ask us before ordering - we're happy to help, and we want you racing on gear you're happy with. For business (B2B) purchases, please contact us first.

14-day right of withdrawal

If you buy as a consumer and change your mind, let us know within 14 days of receiving the product - no reason needed. You can use the Withdraw from contract link in the footer or email [email protected].

Once you've notified us, you have another 14 days to send the product back. The direct cost of return shipping is covered by you. If the product is faulty or you received the wrong item, contact us first and we'll arrange a suitable return method.

Inspecting and returning the product

You can unpack and inspect the product just as you would in a store. Handle it with care and return it complete, with all accessories, cables and manuals. Keep the original box and protective materials, as they help protect the product during return shipping.

If you've handled or used the product beyond what's needed to establish its nature, characteristics and functioning, you keep your right of withdrawal, but we may reduce the refund by the loss in value this caused.

Any questions?

Questions about compatibility, warranty, exchanges or returns? Email [email protected] - a real person will reply, often the owner himself.

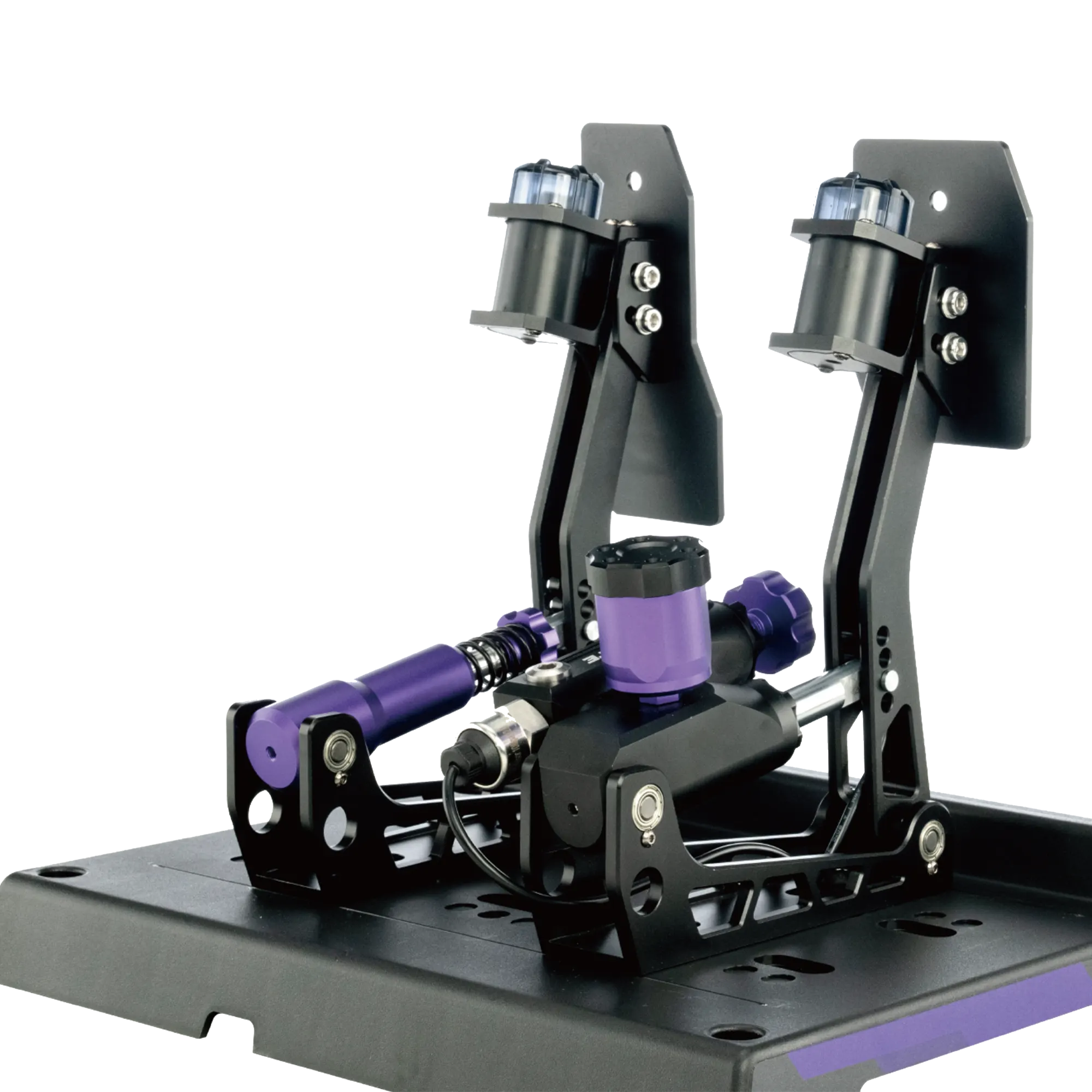

A real hydraulic brake

The 1.5-generation hydraulic system uses a redesigned internal oil passage, a coated chamber and an optimized piston - better damping, less wear, season after season.

An automotive-grade 10 MPa pressure sensor reads your braking up to 100 bar, so no detail of pedal input gets lost - from casual laps to hardcore stints.

Haptics on every pedal - included

The M-DVF dynamic feedback system comes standard: a vibration motor in each pedal, with fully customizable trigger conditions - wheel lock, ABS, traction control, wheelspin and more.

What's usually sold as a pricey add-on module is simply in the box here, configured through Conspit Link 2.0 or SimHub.

A clutch that behaves like one

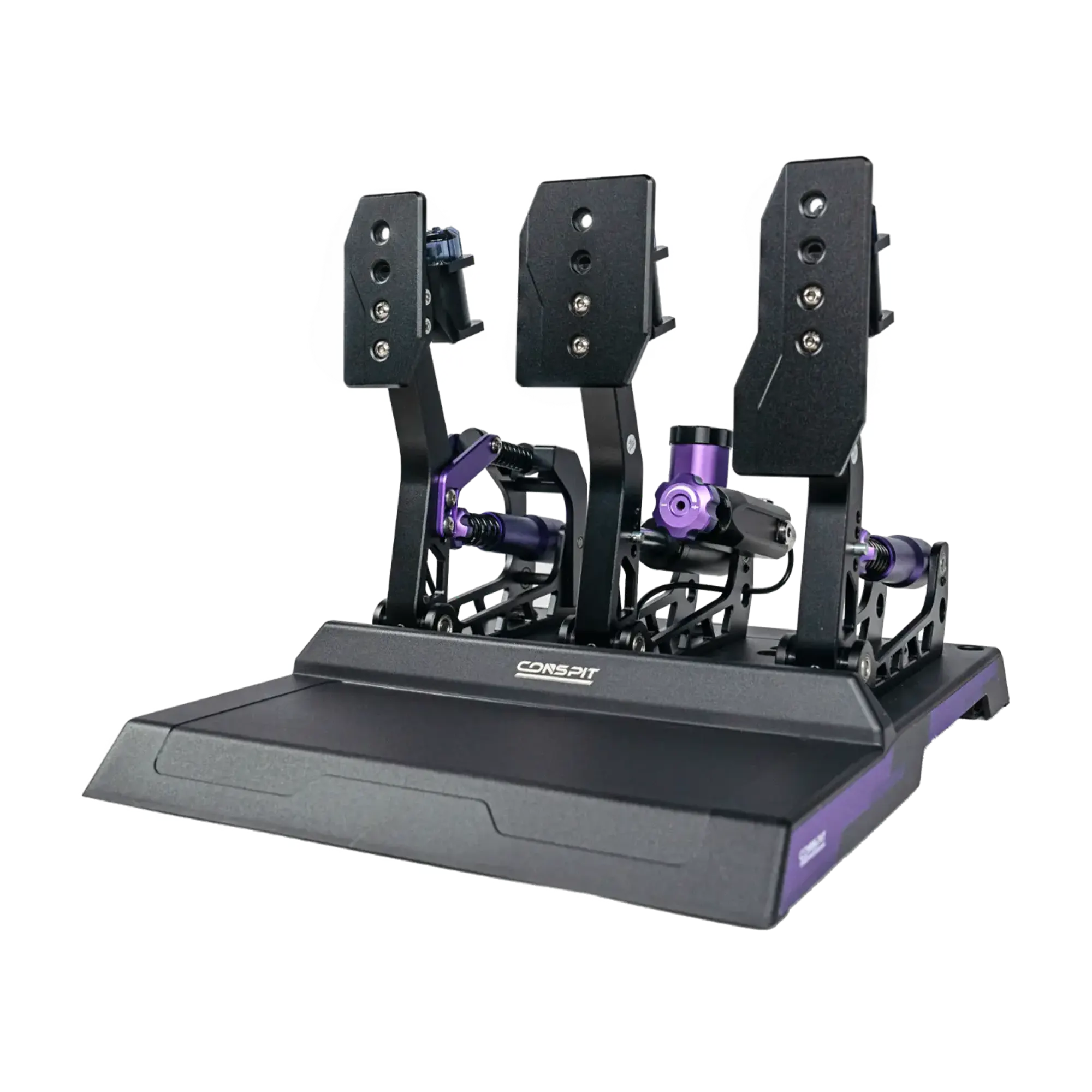

The 3-pedal set adds a non-linear clutch that replicates the force mapping and stroke of the real thing - the bite point actually feels like a bite point.

Throttle and clutch run on Hall sensors, and once installed, everything tunes tool-free: hydraulic preload, pivot position and pedal plate angle.

Want a second opinion? This independent review covers the CPP LITE in depth:

Manual, Downloads and Technical details

Manual

CPP LITE Elastomers Replacing Guide
CPP LITE Function Guide
CPP LITE Quick Guide

Download
Conspit Link 2.0 download

Technical details:

Variants: CPP LITE 2 (throttle + brake) / CPP LITE 3 (adds non-linear clutch)
Brake: 1.5-gen monoblock hydraulic system, automotive-grade 10 MPa pressure sensor, max 100 bar
Sensors: throttle and clutch - Hall; brake - hydraulic pressure sensor
M-DVF vibration feedback: standard, motor in each pedal
Primary material: T6 heat-treated aluminium alloy, CNC machined, anodized
Dimensions (3-pedal set): 327 x 388 x 282 mm
Connection: USB direct, CONSPIT CAN
Adjustable: hydraulic preload, pivot position, pedal plate angle, elastomers (replaceable)
Software: Conspit Link 2.0 + SimHub
Platform: PC
Warranty: 2 years

Compatibility

PC (Windows) only!
Works as a standard USB game controller - compatible with all major sims.

Connection:

USB directly to the PC
CONSPIT CAN - for connecting within the Conspit ecosystem
The M-DVF haptic motors are powered by the included power adapter (a free mains socket is needed)

Mounting:
Pedals bolt onto the included base plate with pre-drilled threads (M8 hardware in the box); the controller box is integrated in the plate - no loose electronics.

Software:
Calibration, curves and haptic triggers via Conspit Link 2.0; SimHub fully supported.

What is in the package?

Conspit CPP LITE pedals - 2-pedal set (throttle + brake) or 3-pedal set with clutch, per chosen variant
1x Base mounting plate with integrated controller box
1x Power adapter (for the M-DVF haptic motors)
1x USB cable
1x Adjustment tool (hydraulic preload)
Spare parts: elastomers, velcro cable ties
6x M8x12 mm rounded head bolts, 4x M8x16 mm bolts, 3x hex wrench
Stickers

What our customers say about this product?

Hydraulic or load cell pedals - what is the difference?

A load cell measures force on a sensor stack; a hydraulic brake measures fluid pressure - the CPP LITE reads it with an automotive-grade 10 MPa sensor at up to 100 bar. The pedal compresses actual fluid, so the resistance builds the dense, progressive way a real brake does. Getting that mechanism at this price is the CPP LITE's whole point.

What is M-DVF vibration feedback and what does it need?

A vibration motor in every pedal - standard, not an upgrade - driving effects like ABS pulsing, wheel lockup and traction control through Conspit Link 2.0 and SimHub. One practical note: the motors are powered by the included power adapter, so plan a free mains socket near the rig.

2-pedal or 3-pedal set?

CPP LITE 2 covers throttle and hydraulic brake - enough for most modern racing with paddle shifting. CPP LITE 3 adds a clutch with a non-linear force curve for H-pattern, heel-and-toe and standing starts. Both share the same base plate with integrated controller.

Do the CPP LITE work on Xbox or PlayStation?

No - the CPP LITE is PC only (Windows), connected over USB as a standard game controller, so it works in all major sims regardless of wheelbase brand.

Do I need a Conspit wheelbase to use these pedals?

No - over USB the pedals work next to any wheelbase brand. The CONSPIT CAN connection exists as a bonus for tidy wiring within the Conspit ecosystem, and tuning (curves, calibration, haptic triggers) happens in the free Conspit Link 2.0.
