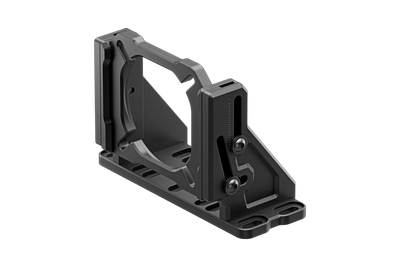

Simucube Wheelbase Mount v2 - CNC-machined aluminium mount, front view

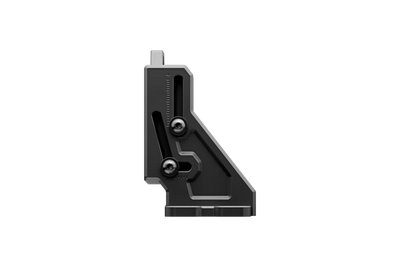

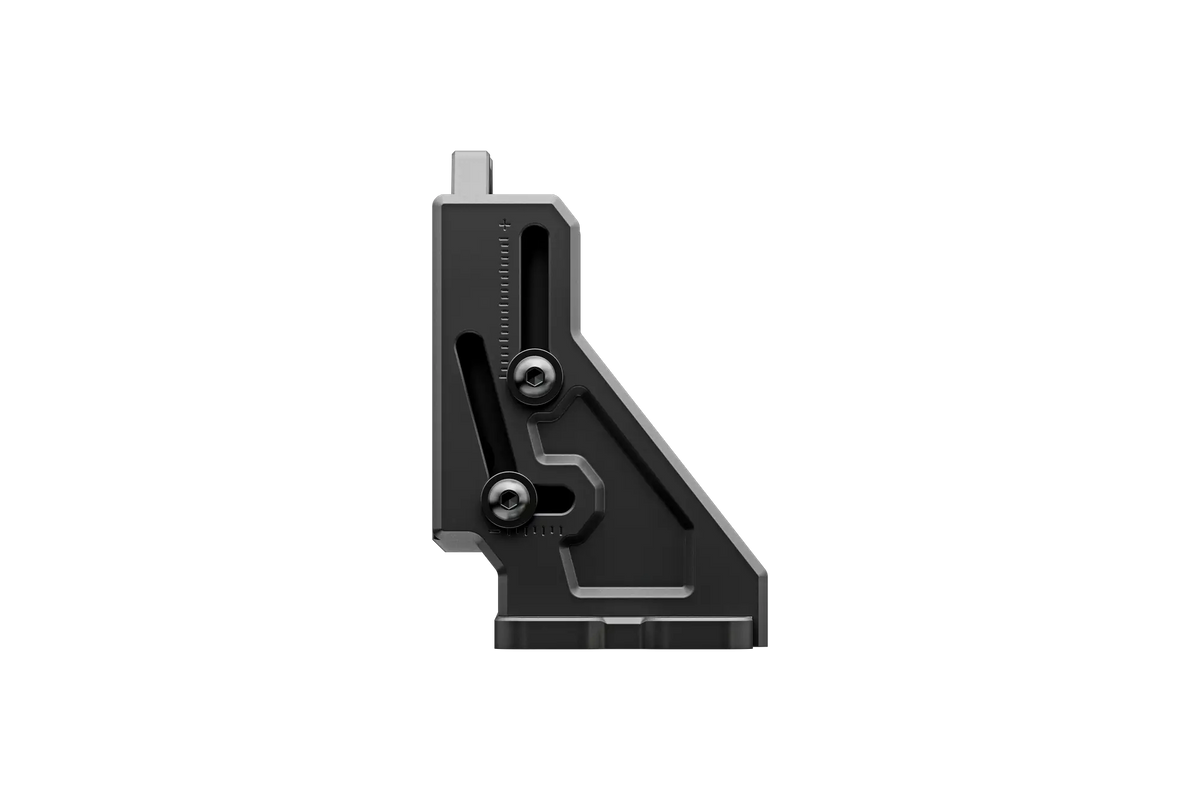

Simucube Wheelbase Mount v2 - side view showing tilt adjustment slots

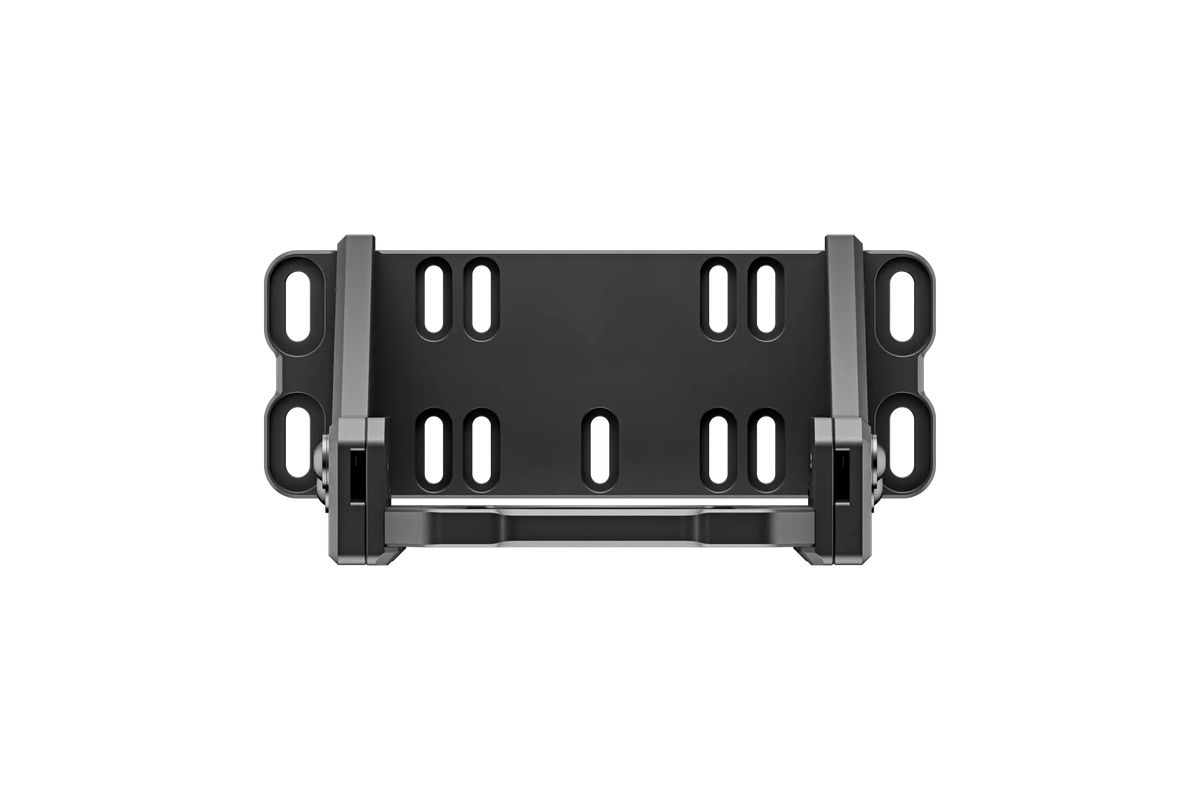

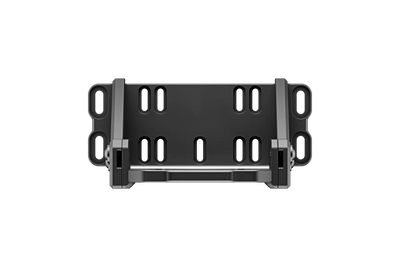

Simucube Wheelbase Mount v2 - rear view of wheelbase bracket and lower bracket

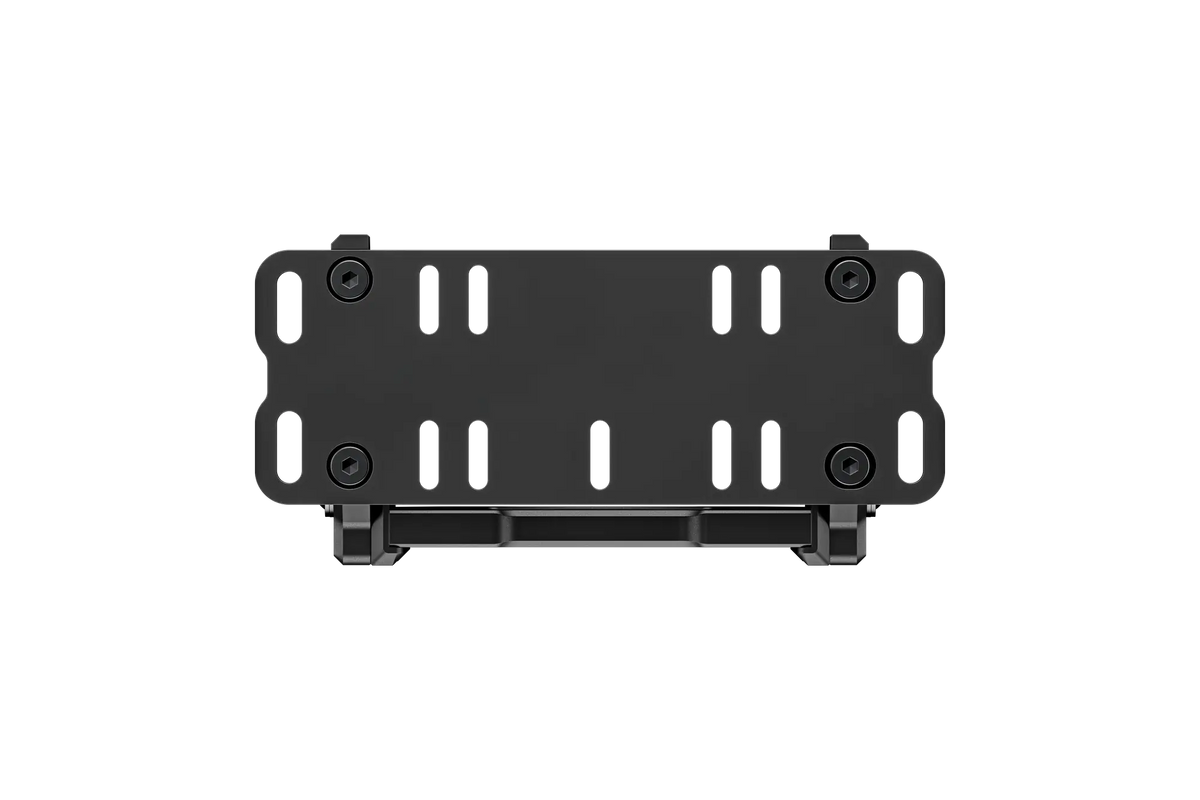

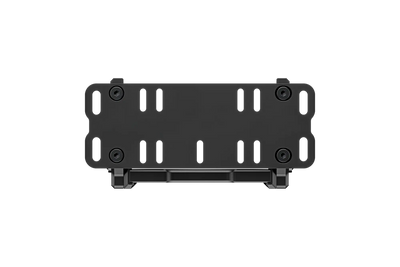

Simucube Wheelbase Mount v2 - detail of angle markings and locking screws

Simucube Wheelbase Mount v2

Trustpilot

CNC-machined aluminium mount for all Simucube 2 and Simucube 3 wheelbases.

  • Drop-in installation, stepless tilt from -24° to +20°, inverted mounting supported
  • Aluminium profile rigs via M8 T-slot nuts, other rigs via M6 slots
€190,64
incl. VAT
Legal guarantee: 2 years
EU harmonised notice on the legal guarantee of conformity

Business customers: the same manufacturer terms apply to B2B orders. Guarantee terms

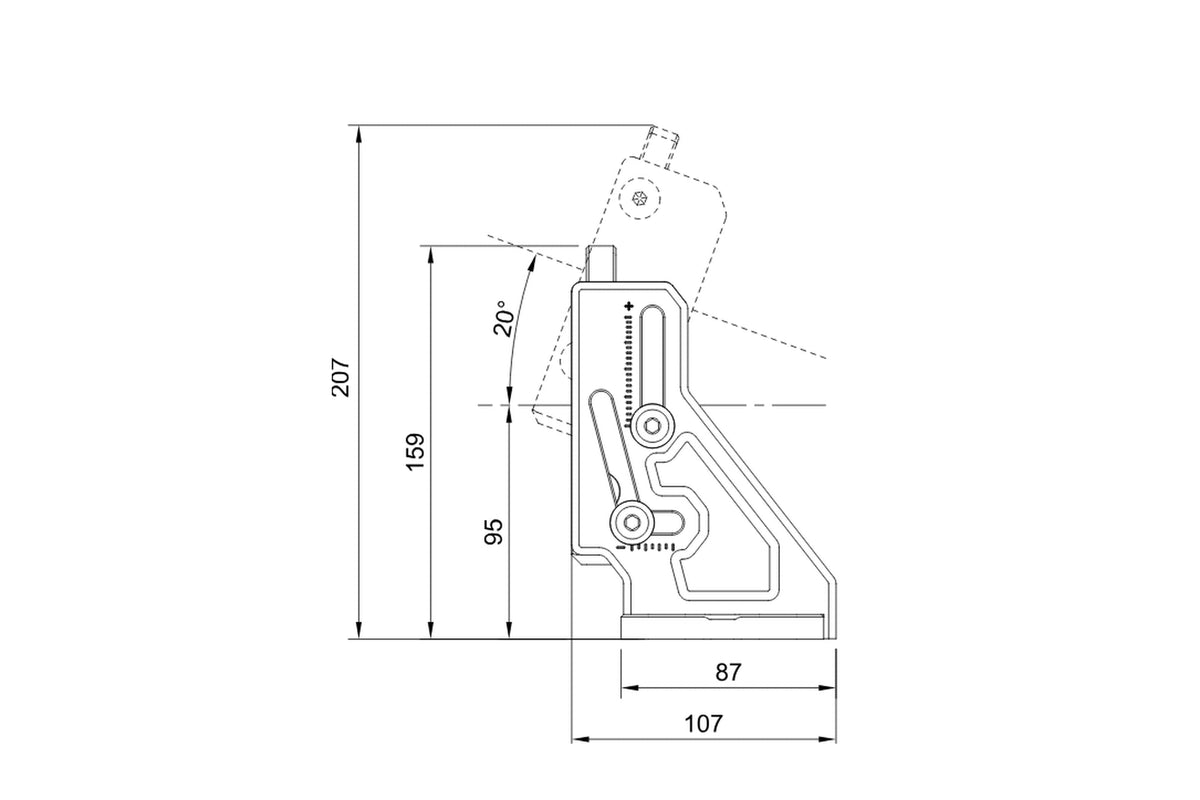

Simucube Wheelbase Mount v2 - side view tilt geometry, -24° to +20° stepless adjustment range

Drop it in, set the angle, lock it

The wheelbase bracket bolts to the wheelbase, the lower bracket to the rig. Two locating pins on each side drop into the grooves of the lower bracket, so the wheelbase hangs on its own weight before a single bolt is tightened - no balancing a heavy motor above the deck.

The slotted pivot then lets the wheelbase tilt steplessly from -24° to +20° without the rear touching the mounting surface. Engraved angle markings on the side plates show the set angle, and the same brackets mount the wheelbase inverted under the cross beam for more legroom and a lower monitor.

See the Mount v2 in action

Manual, Downloads and Technical details
  • Material: CNC-machined aluminium
  • Dimensions: 222 mm (width) x 207 mm (height) x 107 mm (base depth), centre clearance Ø111 mm
  • Weight: 1.5 kg
  • Tilt range: -24° to +20°, stepless; engraved angle markings (+1° steps upwards, -4° steps downwards)
  • Locking: four M8 side screws, ~17 Nm, 5 mm hex key included
  • Mounting instructions and dimension drawings: Simucube Mount v2 online guide
Compatibility

Wheelbases: all Simucube 2 (Sport, Pro, Ultimate) and Simucube 3 (Sport, Pro, Ultimate) models.

Rigs: aluminium profile cockpits via the four included M8 T-slot nuts (outer slots). Cockpits with their own hole pattern via the smaller M6 slots (minimum four M6 screws). Base footprint 222 x 107 mm - check the dimension drawings in the online guide before ordering.

Inverted mounting: below the cross beam, works best on rigs with tall upright profiles. Recommended for advanced users - a second person makes the installation safer.

What is in the package?
  • 1x Simucube Mount v2 (wheelbase bracket + lower bracket)
  • 8x M8x18 flanged hex head screw
  • 4x M8x30 flanged hex head screw
  • 5x M6x16 hex head screw
  • 12x M8 washer
  • 5x M6 washer
  • 4x M8 T-slot nut
  • 1x L-key 5 mm hex
