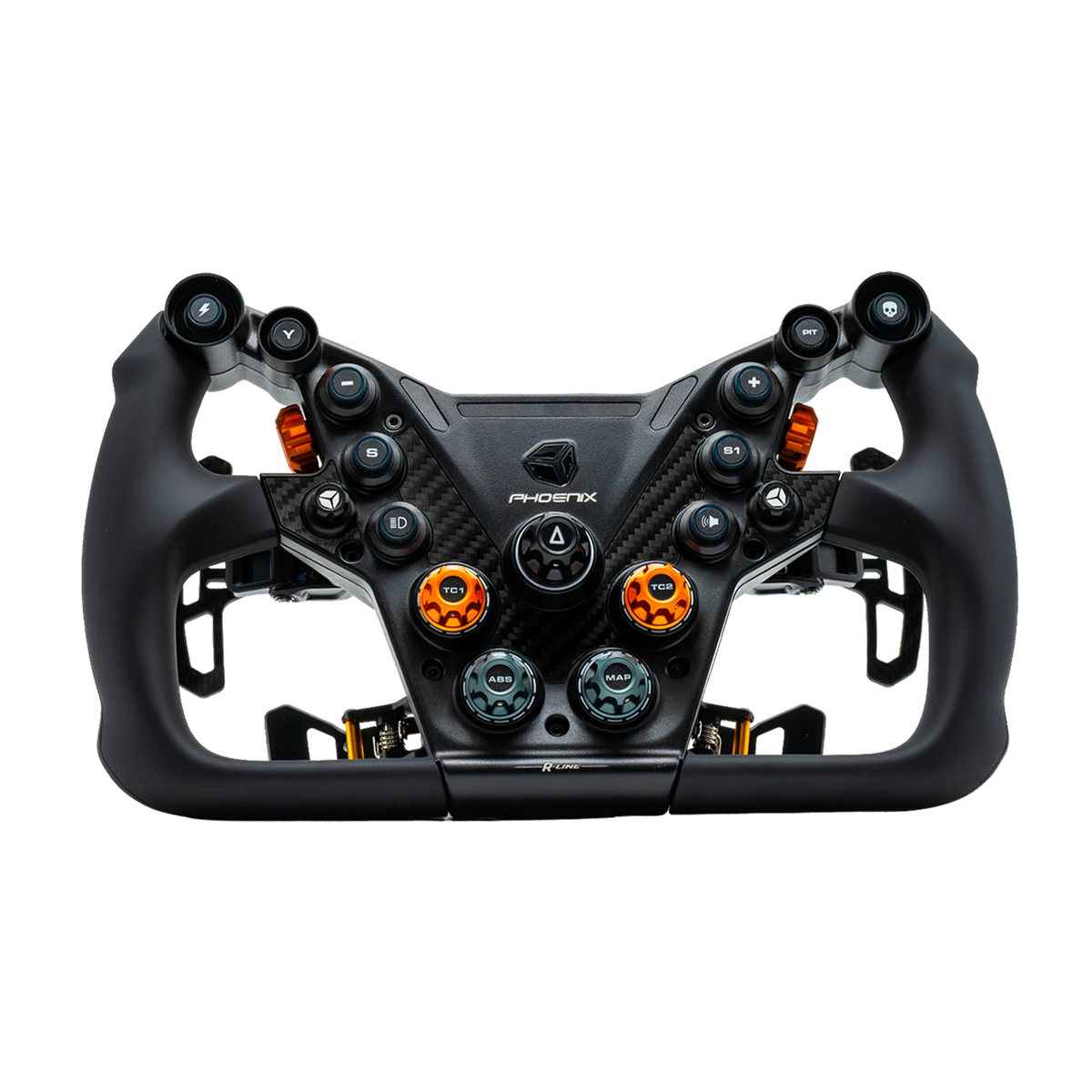

Cube Controls' new GT wheel - die-cast aluminium body rated for over 400 kg of tensile load, 1000 Hz electronics and three hub tiers up to a 3D-printed titanium hub.

  • 10 RGB buttons, 4 front encoders + 12-position absolute encoder, 2 thumb encoders, 2 multi-directional joysticks, RevLite

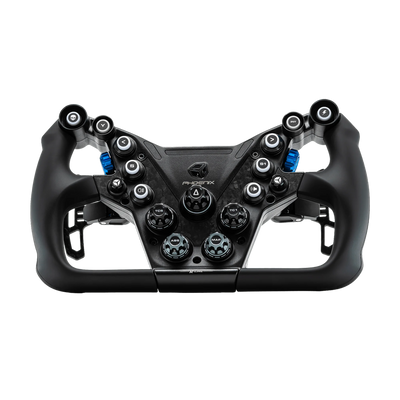

  • Base: Classic hub, no clutch, 1267 g - Premium: 5-axis CNC aluminium hub, 1 clutch with launch control, 1308 g - Extreme: generative titanium hub, 2 clutches, 1432 g
  • CNC shifter with carbon paddles, Q-CONN + USB-C pass-through, SimHub compatible, 30 cm grip-to-grip

Note! PC only. Quick release not included - the hub fits any formula-style QR (3-bolt, 70 mm PCD).

Cube Controls Phoenix Clutches Cube Controls Phoenix Clutches €179,00 EUR
Version
Version: Base
€949,00
incl. VAT
Legal guarantee: 2 years
EU harmonised notice on the legal guarantee of conformity

Business customers: the same manufacturer terms apply to B2B orders. Guarantee terms

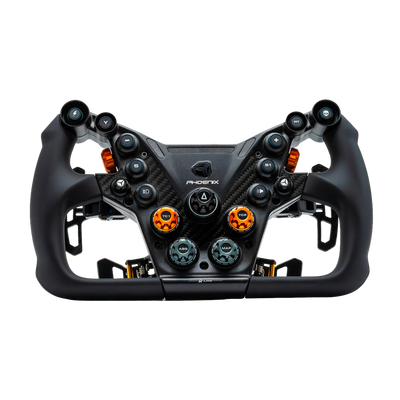

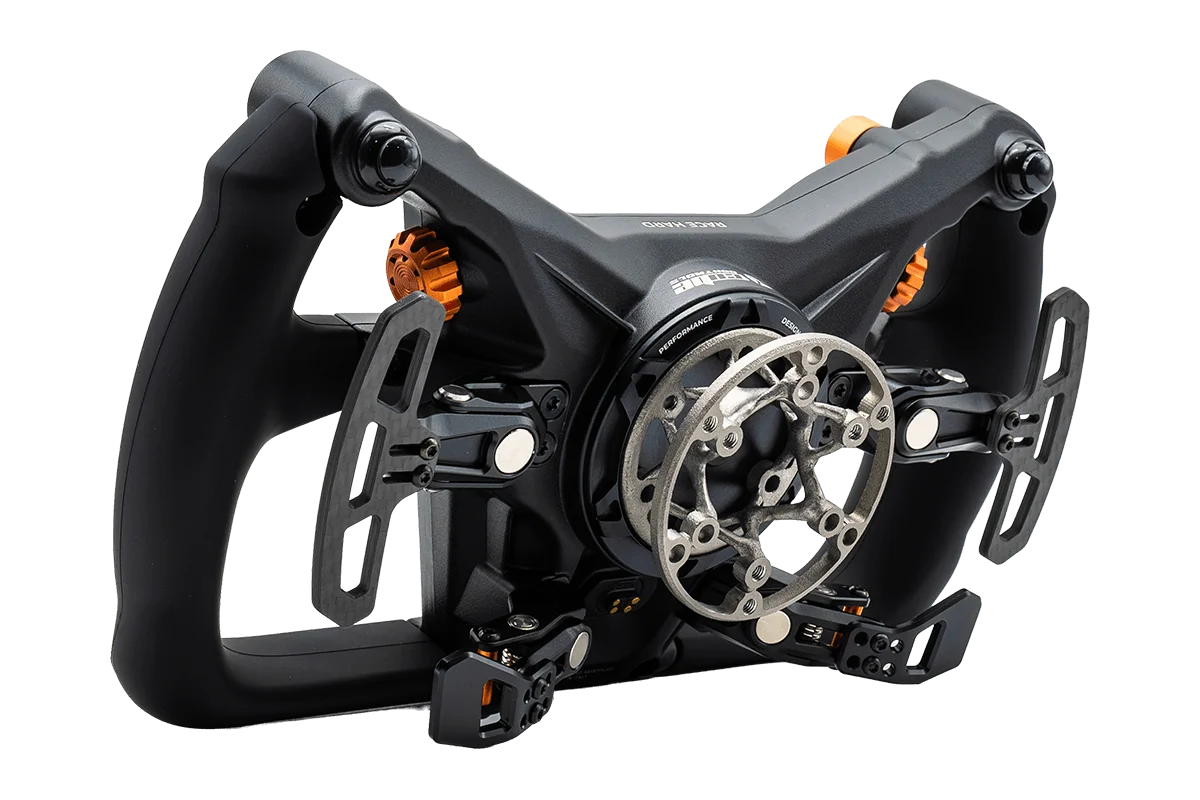

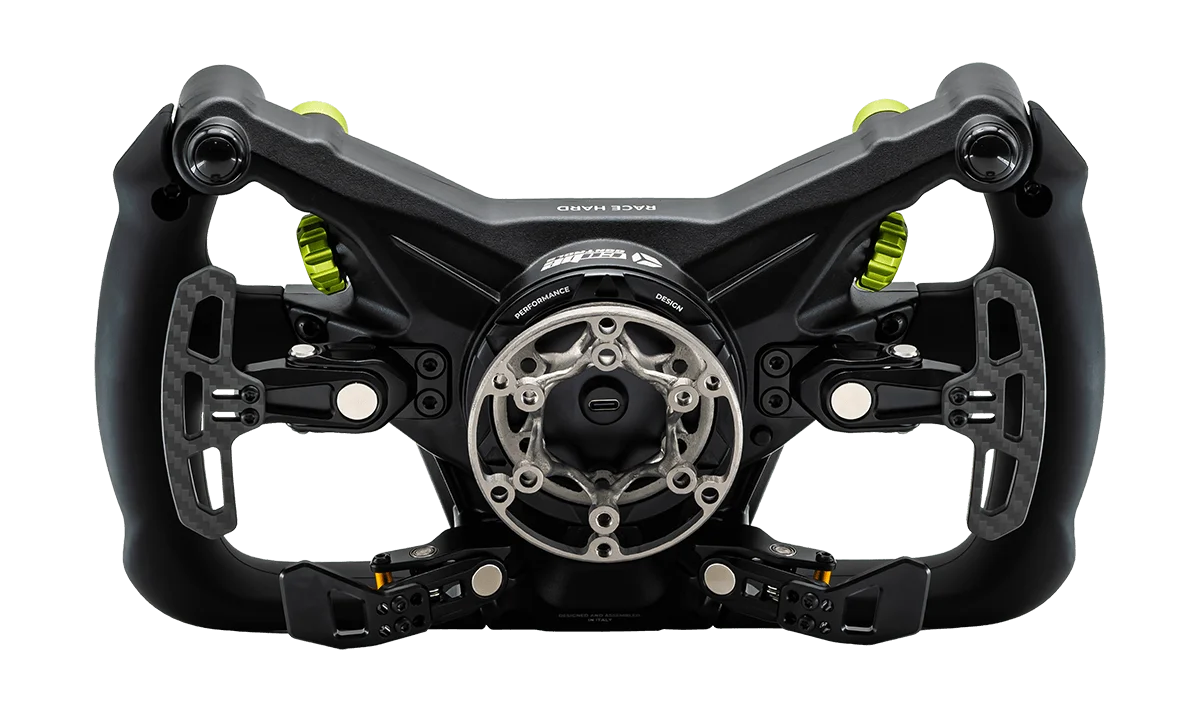

Generative titanium hub - Extreme

The Phoenix Extreme is the first sim racing wheel built around a generative-design titanium hub - shaped by an algorithm that places material only where the load paths run, then 3D-printed as a single seamless part. No machining away from a block, no joints.

The result is a hub with a race-car strength-to-weight ratio: light on the wheelbase, yet rigid enough to pass every input through without flex. Aerospace-grade titanium, motorsport geometry.

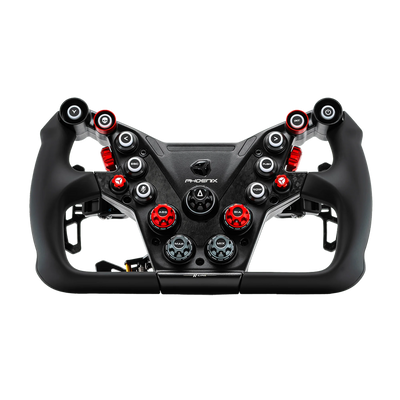

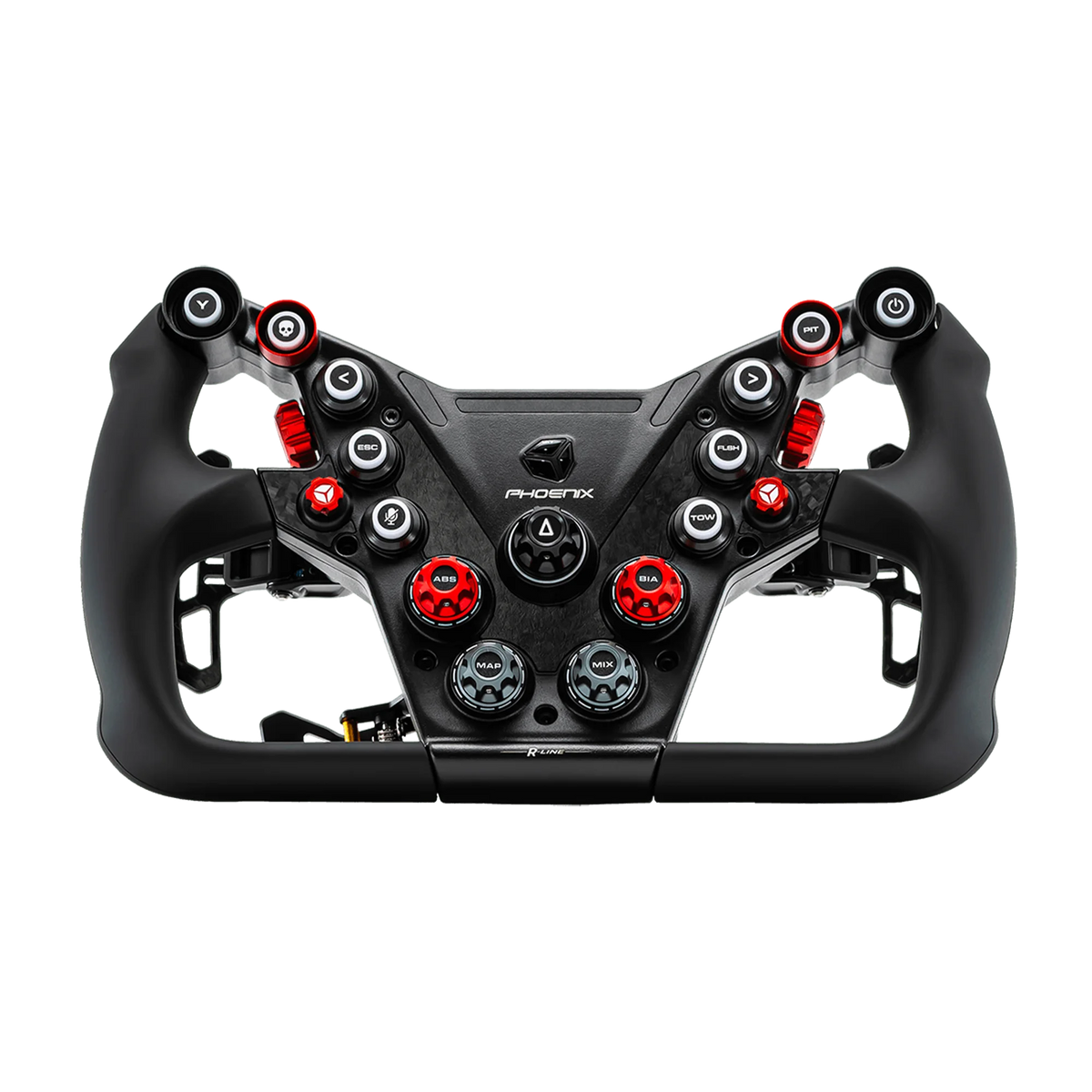

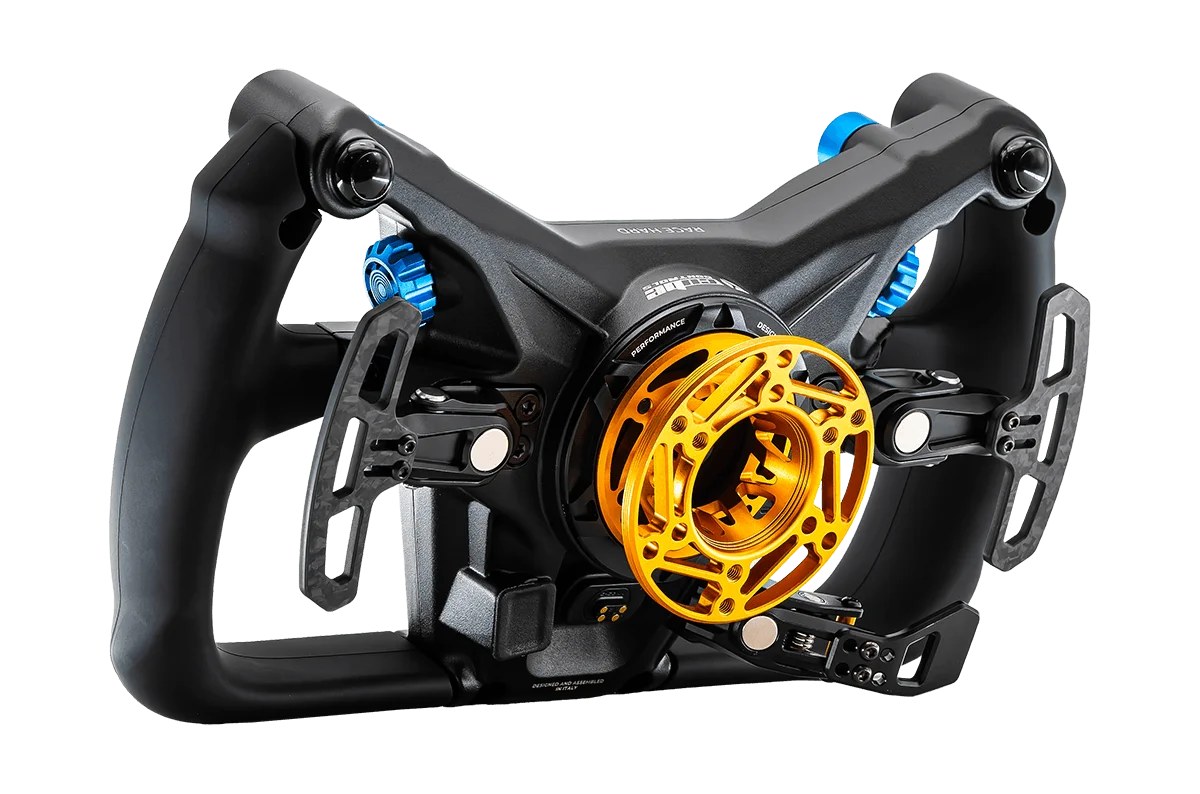

5-axis CNC aluminium hub - Premium

The Premium runs a hub machined on five axes from solid aluminium billet - the same class of machining used for precision motorsport parts. Five-axis cutting allows load-optimised geometry a simpler hub cannot have, so it stays stiff while shedding weight and rotating mass from the wheelbase.

The open internal structure also leaves more room around the connector, which makes mounting, swapping and servicing the wheel faster. Tight tolerances mean no play and no rattle. Available with a grey or gold hub finish.

12-position absolute encoder and 1000 Hz electronics

The control layout combines 10 RGB-backlit tactile buttons, four front rotary encoders, two thumb encoders and two multi-directional joysticks with integrated encoders. New on the Phoenix is a 12-position absolute encoder: each position can be mapped to its own function, giving 12 dedicated inputs on a single rotary, directly from the wheel.

A new PCB architecture and chip run at a 1000 Hz polling rate. RevLite rev lights, the RGB buttons and the backlit logo are all SimHub-controlled, so telemetry-driven lighting works out of the box.

Motorsport body, grips and connection

The main body is die-cast aluminium designed to withstand tensile loads above 400 kg, with motorsport-grade grips on a CNC-machined aluminium core. Proportions follow a compact GT layout - 30 cm grip to grip, 46 mm maximum grip diameter - and stay comfortable in VR.

Shifting is handled by a full CNC-machined shifter with carbon fiber paddles; Premium adds one integrated clutch with launch control, Extreme two. Connection runs through the Q-CONN magnetic cable to USB, with a USB-C pass-through for direct drive wheelbases that route USB through the quick release.

Manual, Downloads and Technical details

Technical details

  • Motorsport die-cast aluminium main body: √
  • Motorsport-grade grips with CNC aluminium body: √
  • Designed to withstand tensile loads exceeding 400 kg: √
  • Grip-to-grip wheel length: 30 cm
  • Grip max diameter: 46 mm
  • Hub: Base - Classic hub, Premium - 5-axis CNC aluminium hub, Extreme - 3D-printed generative titanium hub
  • Wheel hub compatible with all formula-style quick release hubs (3 bolts, 1-inch and 70 mm PCD): √ (all versions)
  • Proprietary custom-made tactile button assembly: √
  • RGB buttons: 10 (Base white, Premium and Extreme black)
  • RevLite rev lights: √
  • RGB-controlled backlit logo: √
  • Front rotary encoders: 4
  • Front absolute encoder (12 positions): 1
  • Thumb rotary encoders: 2
  • Multi-directional joystick with integrated encoder: 2
  • Full CNC-machined shifter with carbon fiber paddles: √
  • Clutches integrated: Base - no, Premium - 1, Extreme - 2
  • Launch control clutch system: Base - no, Premium - yes, Extreme - yes
  • New PCB architecture and chip, 1000 Hz polling rate: √
  • Q-CONN magnetic connection cable: √
  • USB-C pass-through (for direct drive connection): √
  • Platform: PC
  • SimHub compatible: √
  • VR friendly: √
  • Weight: Base 1266.8 g, Premium 1308.4 g, Extreme 1432.4 g
Compatibility

Every Phoenix version ships with its hub (Classic, aluminium or titanium) using the standard formula-style 3-bolt pattern (1-inch and 70 mm PCD). It mounts to any quick release with this pattern - the same standard as the rest of the Cube Controls range - which covers wheelbases from (alphabetical order):

  • Asetek (including quick releases connected via USB to the PCB)
  • Cammus
  • Conspit
  • Fanatec QR1, QR1 Lite, QR2, QR2 Lite, QR2 Pro (via Podium Hub)
  • Moza
  • Simagic
  • Simucube
  • VNM
  • VRS

The quick release itself is not included. Platform: PC only.

What is in the package?
  • Phoenix steering wheel in your selected version, with hub
  • Q-CONN to USB cable
  • stickers
  • necessary tools
