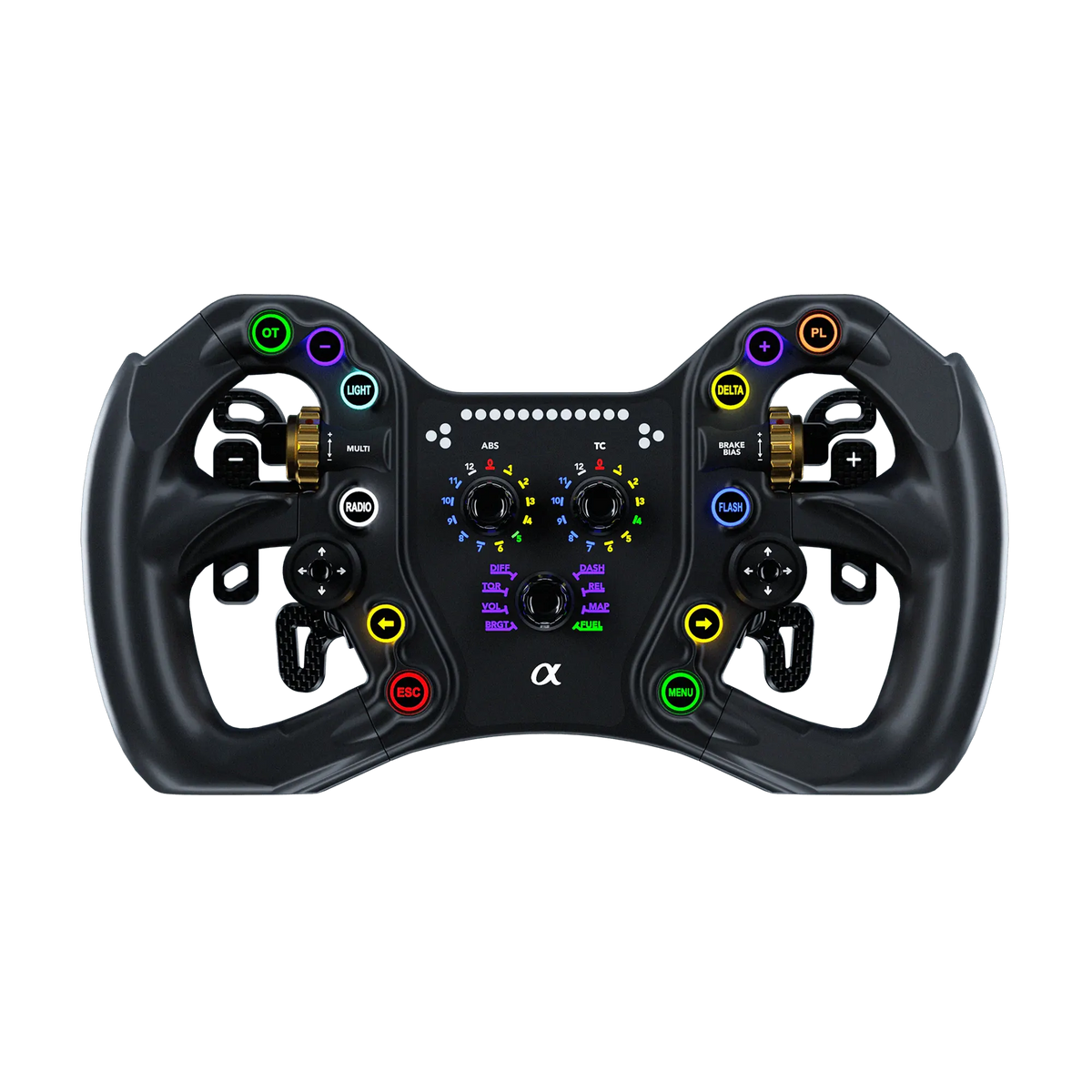

BavarianSimTec Alpha 295mm wheel with CNC-machined 6061-aluminium and ergonomic silicone grips for sim racers.

BavarianSimTec Alpha wheel with CNC-machined 6061-aluminium, ergonomic silicone grips, and slope-cut design for sim racers.

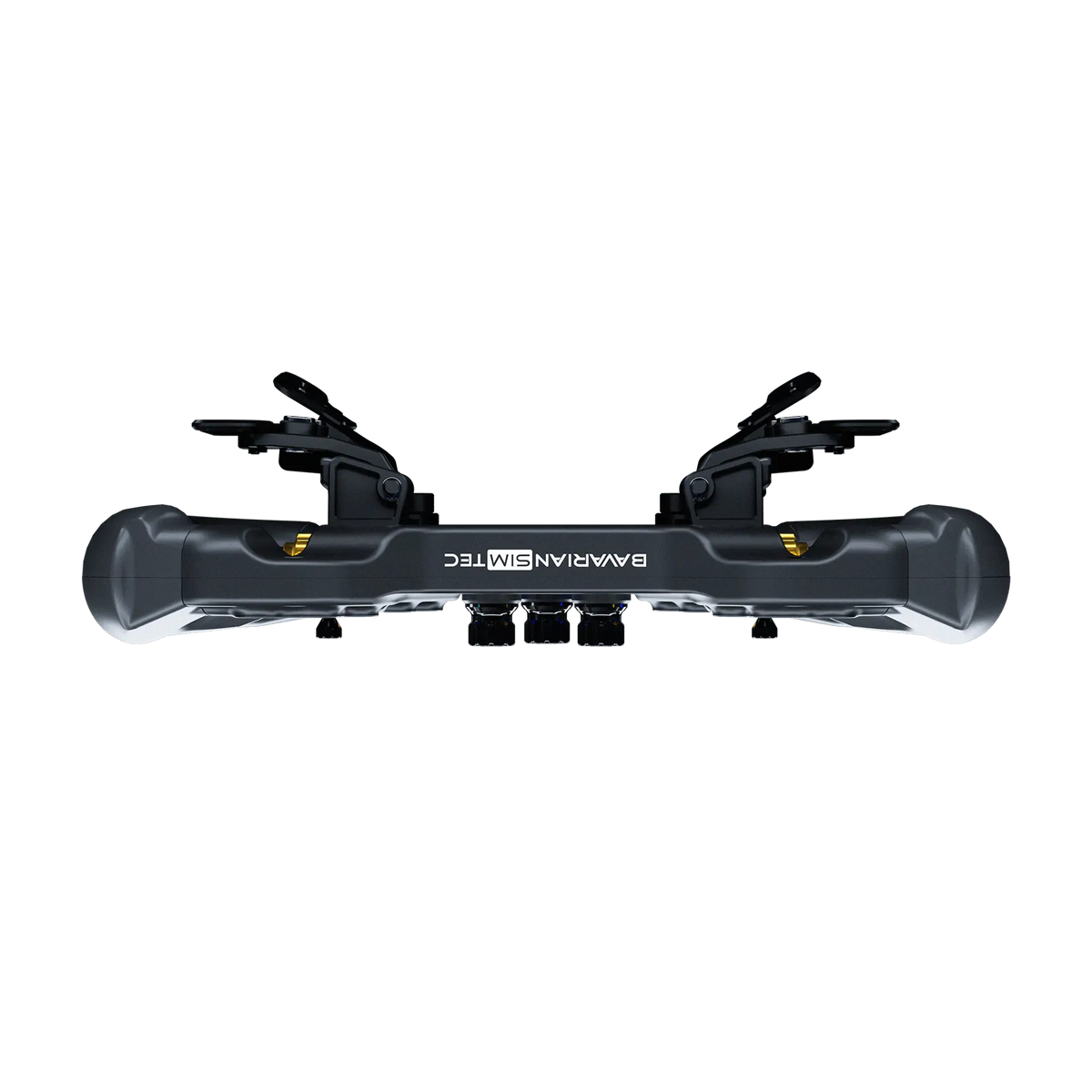

BavarianSimTec Alpha sim racing wheel with ergonomic silicone grips and magnetic paddle shifters shown from the rear view.

BavarianSimTec Alpha CNC-machined 6061-aluminium wheel with ergonomic silicone grips and magnetic paddle shifters for sim racing.

BavarianSimTec Alpha sim racing wheel with ergonomic silicone grips and magnetic paddle shifters, crafted from 6061-aluminium.

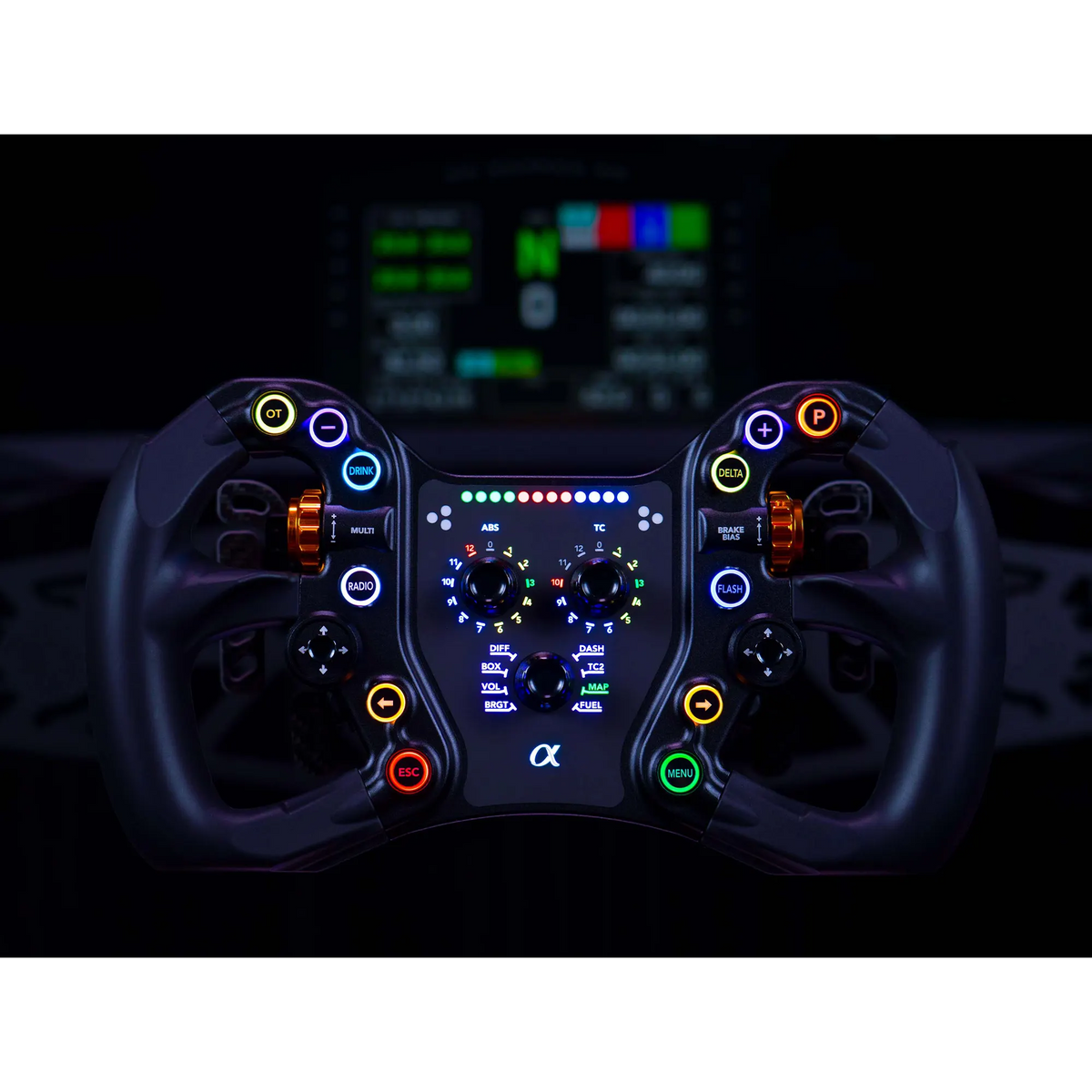

BavarianSimTec Alpha, ergonomic 6061-aluminium wheel with anti-static grips for sim racing, displaying illuminated controls on the dashboard.

BavarianSimTec Alpha Advanced

Name: BavarianSimTec Alpha Advanced
Brand: BavarianSimTec
SKU: BST-AlphaAdvanced
Price: 1264.0 EUR
Availability: InStock
Rating: 5 (1 reviews)

A 295 mm wheel CNC-machined from 6061 aluminium with ergonomic 13° slope-cut silicone grips - designed & made in Bavaria.

Magnetic paddle shifters, butterfly shifters and a contactless dual clutch
Fits Asetek, Simucube, Fanatec, VRS, Simagic and MOZA with the matching adapter

Note! PC only. A quick release or hub is not included - the wheel mounts via the standard 70 mm bolt pattern.

In stock 5 pcs

€1.264,00 incl. VAT~~€1.339,00~~-6%

in the Rewards program

BavarianSimTec - Official reseller
We handle warranty claims for you, shipping included

Legal guarantee: 2 years

EU harmonised notice on the legal guarantee of conformity

Business customers: the same manufacturer terms apply to B2B orders. Guarantee terms

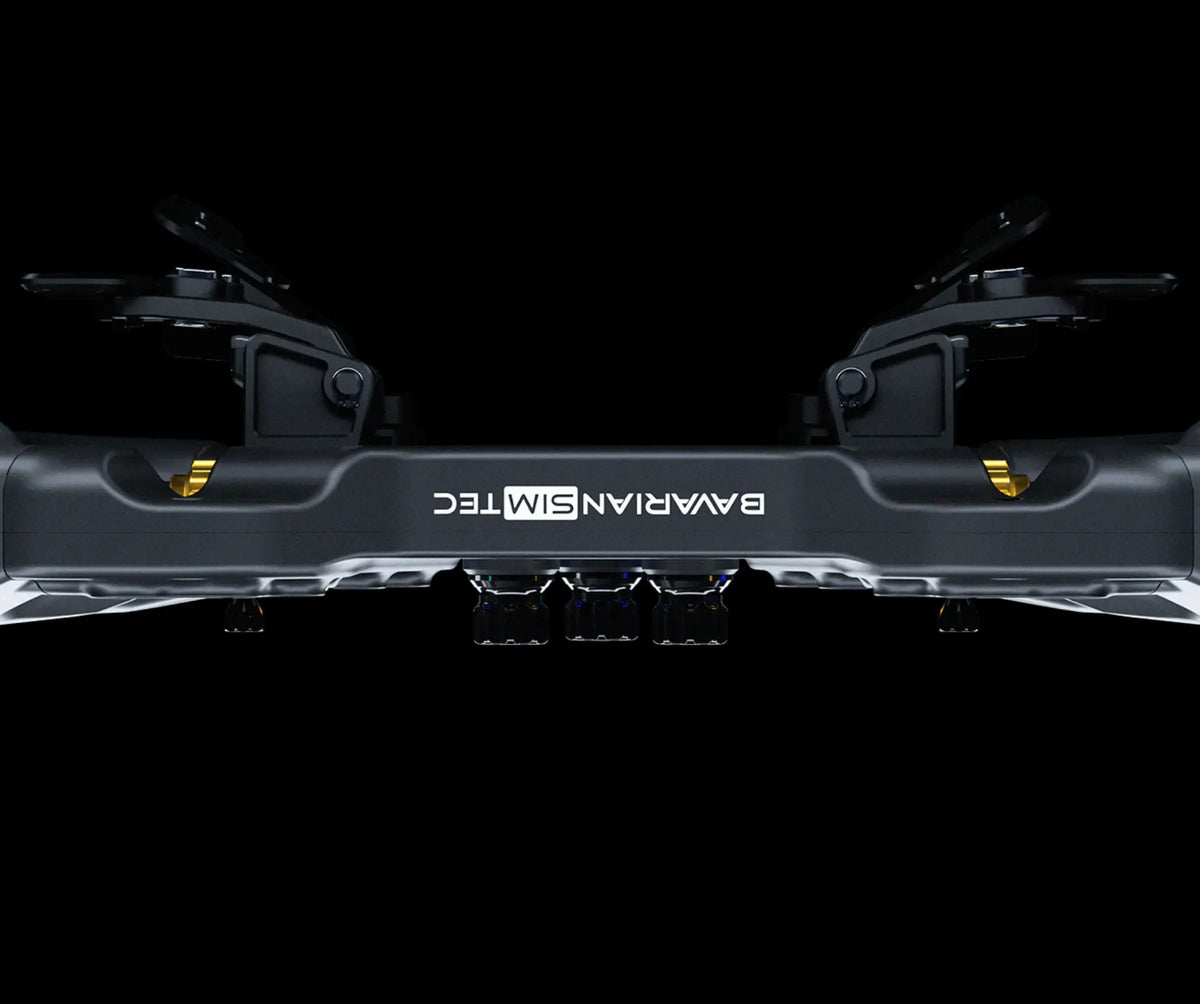

Milled from one block, closed from the back

The Alpha is a 295 mm GT wheel CNC milled from a single block of 6061 aluminium, grip inlays included, so nothing flexes under a strong direct drive base. Two shells bolt together from the rear, which leaves the front face free of screw heads - just black anodising and laser-engraved markings.

It weighs 1,350 g with all six paddles - shifters, butterfly shifters and dual clutch.

Milled from one block, closed from the back

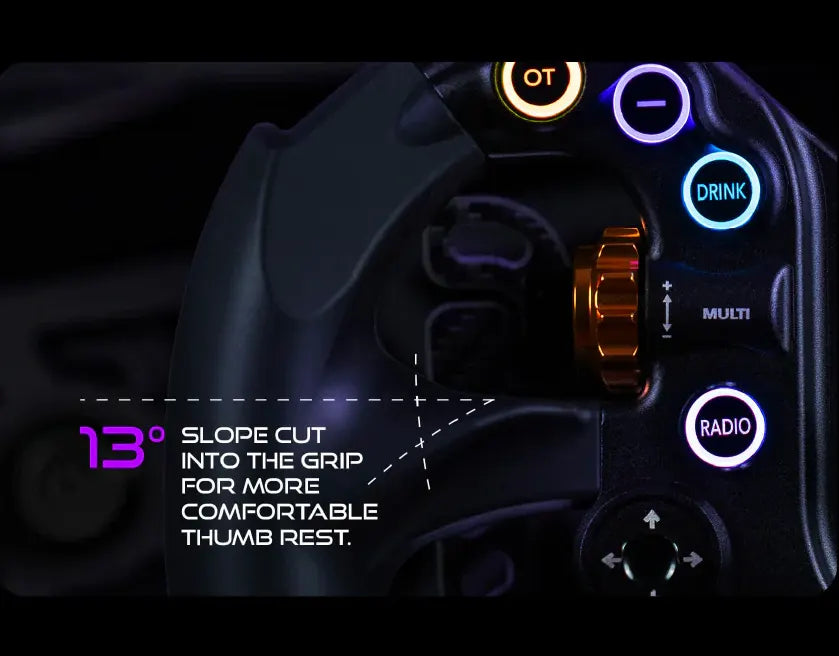

Grips cut for the thumb

The 60A anti-static silicone grips carry the same 13-degree slope cut as the Delta family: the thumb sits on top of the grip rather than beside it, so the button field stays in reach through a whole stint. The grips are sized for larger hands without looking bulky and hold the same with or without gloves.

AdaptiveBeamTec front encoders

The three front encoders read the car you are in and light their rings to match: yellow for dry settings, blue for wet, green on the value you are on, red for off. ABS and TC state is one glance away without a display on the wheel.

3 | 12 | 3 rev lights

Rev lights and flag lights come ready to use with car-specific shift points for iRacing and ACC out of the box; other sims and your own profiles run through SimHub.

Twelve buttons, five encoders, two switches

Twelve RGB tactile buttons at 500 gf with four LEDs each, so the backlight is even and a press is never in doubt. Two high-detent thumb encoders sit where the thumbs land, and the two 7-way switches are stacked in a tower so both are reachable without moving the hand.

With AdaptiveBeamTec and the Multi-Link Selector on top, the three front encoders cover what a dozen fixed encoders would - without the clutter.

Startup animation

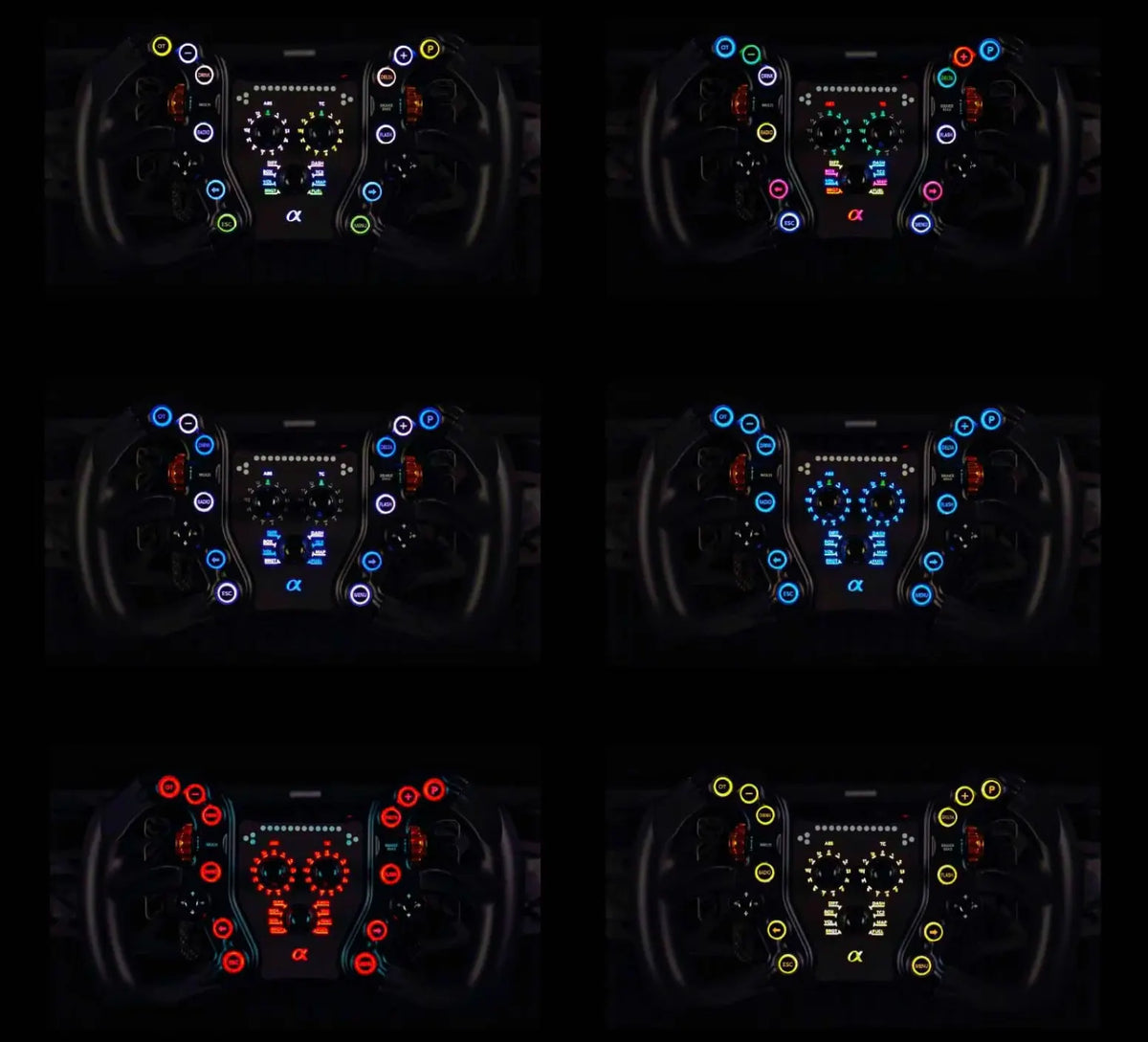

112 LEDs, your colours

Every one of the 112 LEDs is individually addressable in SimHub. Load a community colour scheme or animation, or build your own Alpha profile from scratch - button colours, rev pattern, flag behaviour and the startup sequence are all yours to set.

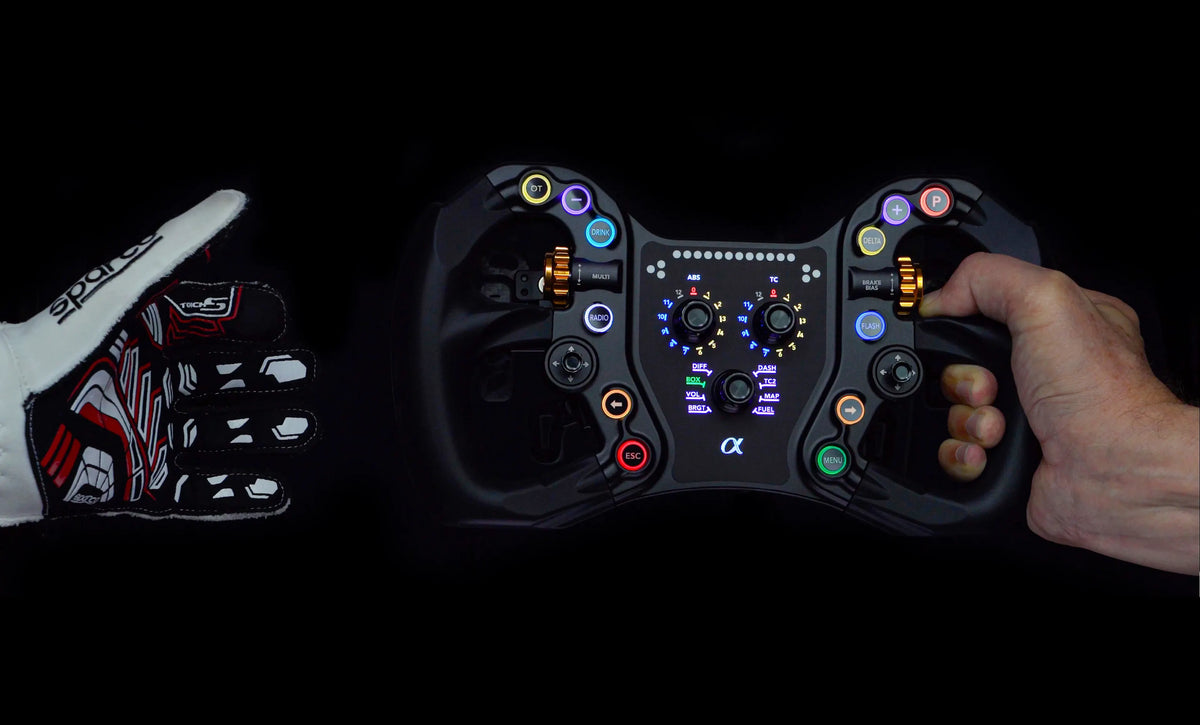

Made in Regensburg

BavarianSimTec is a small team of sim racers in Regensburg, Bavaria, who design, machine and hand-assemble every wheel themselves. The Alpha was their first wheel and it set the pattern for everything since - form follows function, and every element has to earn its place on the wheel.

What you need for your wheelbase

Pick your wheelbase brand - parts, screws and steps from BavarianSimTec's setup guide.

Simucube 3 QR

Simucube 3 quick release on a BavarianSimTec steering wheel - mounting drawing

You need

Link Quick Release for Simucube 3€149,00
3x M5 x 12 mm screws

Mounting

Screw the quick release to the back of the steering wheel with three M5 x 12 mm screws.
Tighten each screw to max. 2.5 Nm.

Without the Spacer only on the Alpha and OmegaPRO v2.

Technical details and compatibility

Compatibility

Windows PC only Fully SimHub compatible. DNR ready.

Good to know

No display on this wheel. Want a screen? Choose the Delta PRO.
Quick release or hub not included. The backcase has a 70 mm pattern with three threaded holes; for hubs that need six holes or a 50.8 mm pattern add the BavarianSimTec Mounting Plate. Screws may enter the wheel body by 4 mm at most.
USB pass-through means the wheel's data travels through the wheelbase - the base still needs its own data cable to the PC. On a Simagic Alpha EVO with the QR-A adapter that is the base's second Type-C cable. On Simucube 2, Simucube 3 and Fanatec the coiled cable runs from the wheel to the PC.
2-year warranty handled by GPerformance - in a warranty case we arrange and pay the shipping.

Connection

a) USB pass-through (data goes through the wheelbase - no coiled cable from the wheel to the PC)

VNM Simulation
Simagic
VRS
Asetek

b) USB (included coiled cable, Lumberg to USB-A, straight to the PC)

Simucube 2
Simucube 3
Fanatec
MOZA (with the corresponding adapter)

Manual, downloads and technical detailsManual and technical details

Manual
BavarianSimTec Alpha manual (PDF)

Downloads
BavarianSimTec PitStopApp download
SimHub download

Technical details:

Diameter: 295 mm
Weight: 1,350 g
Frame: two-shell 6061 aluminium, CNC milled, black anodised, laser-engraved markings
Grips: 60A anti-static silicone with 13-degree slope cut
Buttons: 12x illuminated RGB tactile push buttons, 500 gf, 4 LEDs per button
Front encoders: 3x with AdaptiveBeamTec illumination, 6 Ncm
Thumb encoders: 2x high detent, 3 Ncm
Switches: 2x 7-way, laser engraved
LEDs: 112x programmable, SimHub compatible
Shifters: 2x aluminium magnetic paddles + 2x butterfly shifters above them
Clutch: 2x contactless magnetic clutch paddles
Mounting: 70 mm bolt pattern on the backcase (3 threaded holes); optional mounting plate with 70 mm and 50.8 mm patterns (3 threaded + 3 through holes each)
Warranty: 2 years

What's in the box?

BavarianSimTec Alpha Advanced steering wheel
Coiled USB cable (Lumberg to USB-A)
Acrylic customisation kit with tweezers
